Starboard Wingboard Foil 2025
WINGBOARD FOIL
BEGINNER TO INTERMEDIATE FOILERS
STABLE WATER IMMERSION
• The Wingboard maximizes on-water balance with high volume at the tail, nose, and rails.
• With balanced volume further away from your feet, you feel the stability due to volume leverage.
• Round rails on the deck make it comfortable to rest your feet when in the kneeling position.
EXTRAORDINARY FLIGHT CONTROL AND STABILITY
Come from the reduced thickness in the standing area, as your feet are close to the foil, much like a thin surfboard.
EASY TOUCH DOWN
• The long, stretched V and rounded nose are aiding your touchdown and redirecting you into a new lift position.
• The “cutaway” volume is reduced at the tail, so when you come down for a landing, the board’s nose will easily angle itself upwards towards flight mode.
NEW NOSE OUTLINE
The nose is slightly longer and more pulled in, creating less area to catch through turns while still popping up from touchdowns.
NEW PIN TAIL
Based on the success of the Ace Foil, the pointed tail on the bottom extends the rocker for a fast glide during takeoff and reduces drag.
SCRATCH PROTECT NOSE STICKER
Protects your board from scratches and dings when placed on the ground, giving you peace of mind before and after your session
ADDITIONAL CENTRAL FINS

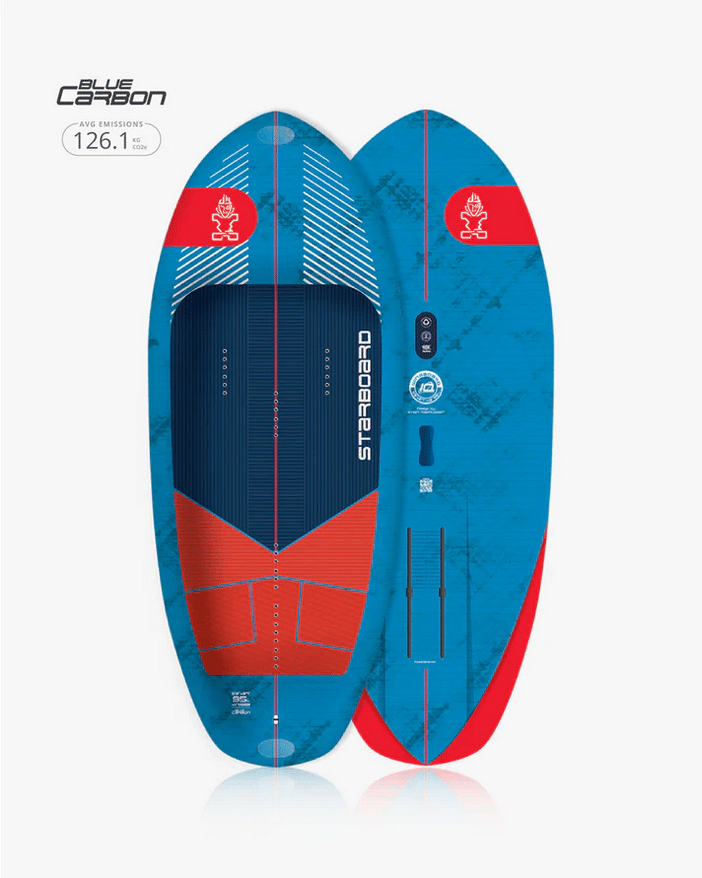

BLUE CARBON FOILBOARD
LIGHTWEIGHT, STRONG AND DURABLE
2x Carbon Stringer for Enhanced Performance
Experience the lightest, stiffest, and strongest technology to get you flying faster and for longer.
› Get flying faster with a lighter board
Using top-grade 150g Biaxial Carbon, the board is significantly lighter yet incredibly strong and stiff. A custom process creates a double stringer, boosting breakage strength and stiffness.
› Reinforced standing area
High-density PVC in the standing area enhances durability and prevents heel dents.
› Maximum stiffness and rigidity
Lightweight biaxial carbon fiber on the deck and bottom ensures stiffness and rigidity. An arrow-shaped PVC stringer provides extra breakage strength and stiffness over the foil, essential for long, narrow shapes.

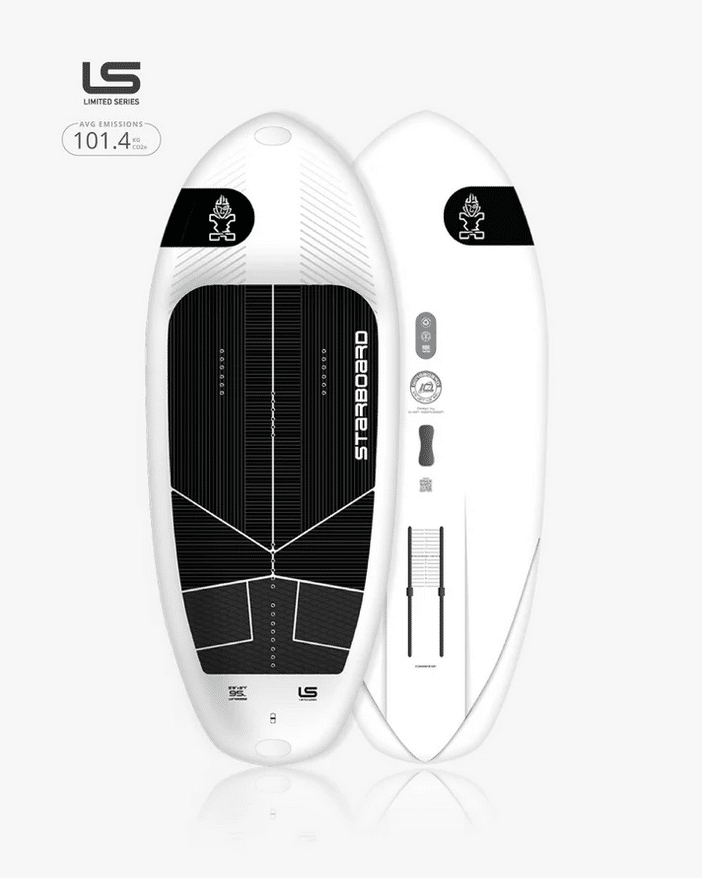

LIMITED SERIES FOILBOARD
TIMELESS LOOK, SOLID PERFORMANCE
› Super-strong and lightweight biaxial carbon fiber is laminated on the deck and bottom over the foil for maximum stiffness and rigidity. A PVC stringer prevents impact damage and creates a secure mount for the foil box.
› Double-reinforced rails provide additional strength and stiffness, while multiple layers of fiberglass protect the entire board.
› Australian pine wood in the standing area offers extra impact resistance and rigidity in the most critical impact zone.
› All inserts feature high-density foam reinforcements, along with added rail and nose reinforcements for extra durability.
ASAP FOILBOARD
AS STRONG AS POSSIBLE
› Impact-resistant, high-density EVA wraps the entire rail from nose to tail for extra protection and durability.
› Multiple layers of high-grade fiberglass wrap the entire hull to increase the overall strength at the lightest weight.
› Australian pine wood on the standing area provides maximum impact resistance and rigidity, preventing heel dents.
› Super-strong and lightweight biaxial carbon fiber is laminated on the deck and bottom over the foil for maximum stiffness and rigidity. A PVC stringer prevents impact damage and creates a secure mount for the foil box.
Model | 7’2″ x 32″ WINGBOARD [NEW] | 6’5″ x 28.5 WINGBOARD [NEW] | 5’9” x 27” WINGBOARD [NEW] | 5’3” x 26” WINGBOARD [NEW] | 4’9″ x 25″ WINGBOARD [NEW] | 4’6” x 24.5” WINGBOARD [NEW] |
---|---|---|---|---|---|---|
Rider Weight | Up to 120kg | Up to 100kg | Up to 85kg | Up to 70kg | Up to 70kg | Up to 55kg |
Length | 7’2.5″ / 223.2 cm | 6’5″ / 199.6 cm | 5’9″ / 181.1 cm | 5’3″ / 164.2 cm | 4’9.3″ / 148.9 cm | 4’6″ / 140 cm |
Width | 32″ / 82.1 cm | 28.5″ / 72.5 cm | 27″ / 69.6 cm | 26″ / 66.8 cm | 25″ / 64 cm | 24.6″ / 62.6 cm |
Thickness | 5.6″ / 14.5 cm | 5.7″ / 14.4cm | 5.1″ / 13 cm | 5.5″ / 14.1 cm | 5.4″ / 13.9 cm | 5.2″ / 13.2 cm |
Tail Width | 23.2″ / 59.1cm | 21.5″ / 54.5 cm | 20.9″ / 53 cm | 20.9″ / 53 cm | 20.5″ / 52 cm | 21.5″ / 54.5 cm |
Volume | 140 L | 115 L | 95 L | 85 L | 70 L | 50 L |
Aspect Ratio | 2.7 | 2.7 | 2.6 | 2.4 | 2.2 | 2.2 |
Footstrap | ASAP, Limited Series: After-market | ASAP, Limited Series: After-market | Blue Carbon: Included Limited Series: After-market |
Blue Carbon: Included Limited Series: After-market |
Blue Carbon: Included Limited Series: After-market |
Blue Carbon: Included Limited Series: After-market |
Foil Box Set Up | 2X US Box 14″ ASAP: 2X 14″ US Box + 16″ US Centre US box |
2X 14″ US Box | 2X 14″ US Box | 2X 14″ US Box | 2X 14″ US Box | 2X 14″ US Box |
After market | ASAP: Recommended Drake Shallow 22″ | |||||
Weight | Limited series: 10.48 kg ASAP: 11.15 kg |
Limited series: 8.86 kg ASAP: 9.64 kg |
Blue Carbon: 6.31 kg Limited series: 7.97 kg |
Blue Carbon: 5.84 kg Limited series: 7.34 kg |
Blue Carbon: 5.42 kg Limited series: 6.52 kg |
Blue Carbon: 4.98 kg |
Stability | 10+ | 9.5 | 8.5 | 7.5 | 6.5 | 5.5 |
Maneuverability | 5 | 6 | 7 | 8 | 9 | 10 |
Board weight tolerance:
Blue Carbon +/- 5% , Limited Series +/- 6% , ASAP +/- 6%
Starboard Wingboard Foil 2024
Maximum Progression
EARLY AND GRADUAL LIFT
MORE CONTROLLED & AGILE FLIGHT
EASY TOUCH DOWN
Olympic windsurfing and thin performance surfboards inspired this design.
The Wingboard is the board designed for maximum progression, early and gradual lift onto the foil, more control and agile flight, super easy touchdowns.
Our 2024 Wingboard design is designed to get you up and foiling, aimed at beginner to intermediate foilers wanting to progress their foiling to the next level, with design language borrowed from our windsurf development team.
A comprehensive six-board range allows foilers of all sizes to enjoy the sensation of flight.
NEW ON WATER
The Wingboard maximizes on-water balance with high volume at the tail, nose, and rails.
NEW BALANCED VOLUME
Further away from your feet, you feel the stability due to volume leverage.
ROUND RAILS
On the deck make it comfortable to rest the foot when in the kneeling position.
NEW SIDE CHANNELS DRAIN WATER
From the deck when the board starts accelerating.
NEW BRUSHED EVA DECK PADS
Reduce knee rash while providing ample traction.
NEW CURVED INNER CHANNEL
Accelerates the water and creates a rocking effect that helps the board get into a lift position.
NEW THE “CUTAWAYS”
At the tail act as stabilizers while lifting out of the water when the board gains speed, reducing the wetted surface and allowing the board to accelerate smoothly while on water.
NEW THE ANGLED TAIL
Helps make the critical transition from water to air seamless, while the sharp rails are vital to accelerate into early lift and flight.
NEW A DEEP V
Flows all the way from the nose to the foil, making it easy to get airborne in choppy waters and letting the board skim during touchdowns for easy rebound.

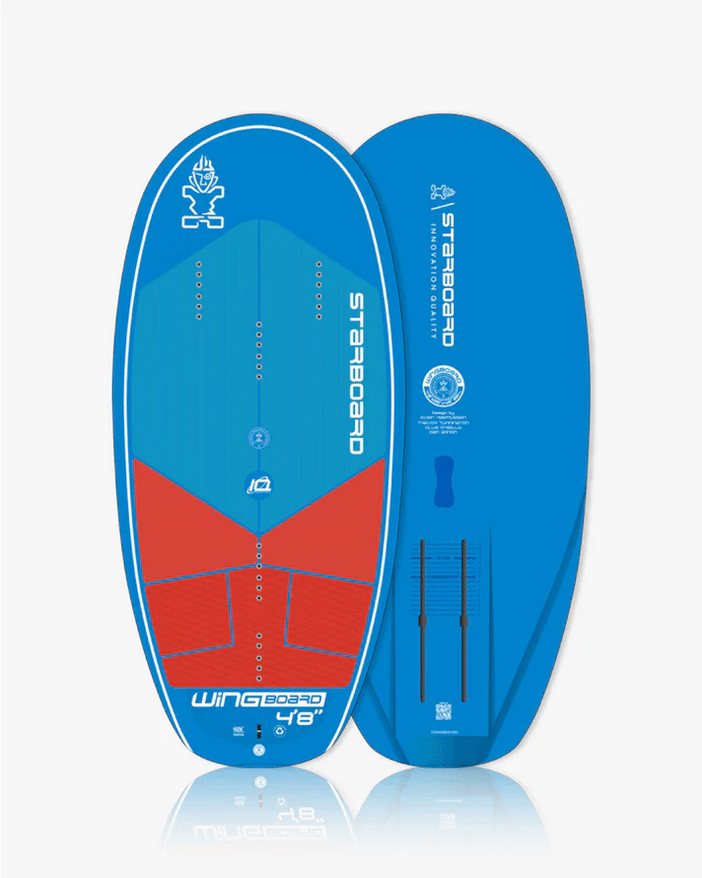

BLUE CARBON
THE BEST VALUE FULL CARBON CONSTRUCTION WE HAVE EVER PRODUCED
• Top grade 150g Biaxial Carbon wraps the entire board, joining with an overlap on the deck and bottom to create flat stringer, increasing the total breakage strength.
• 2 skins of durable fibre glass form a sandwich around the biaxial Carbon, protecting the carbon by dampening and absorbing the impact.
• The combination of twin T-stringers deck and bottom work together to increase the overall total breakage strength.
• Multiple reinforcements in the standing area, nose and tail increase impact resistance.

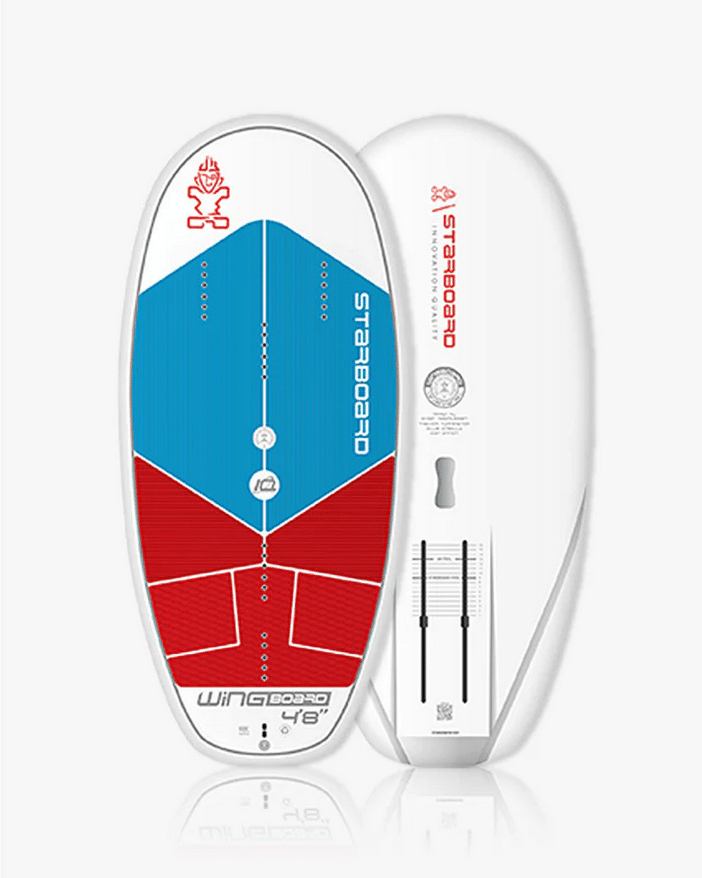

LITE TECH
LIGHT, STRONG, AFFORDABLE
• Extra rigidity with the introduction of unidirectional stringer bands and solid with added rail/ nose reinforcements.
• Australian pine on the standing area for extra impact resistance and rigidity in the most critical area.
• All inserts have added high-density foam reinforcements.
ASAP
AS STRONG AS POSSIBLE
• Impact-resistant high-density EVA wrapping the whole rail from nose to tail.
• Multiple layers of high-grade fiberglass are wetted out in epoxy resin wrapping the hull.
• Australian pine on the standing area for extra impact resistance and rigidity.
• Extra rigidity with the introduction of unidirectional stringer bands and solid with added rail and nose reinforcements.
Model | 7’1″ x 32″ | 6’5″ x 28.5″ | 5’8″ x 27″ | 5’2″ x 26″ | 4’8″ x 25″ | 4’4″ x 24″ |
---|---|---|---|---|---|---|
Rider Weight | Up to 130 kg | Up to 105 kg | Up to 85 kg | Up to 70 kg | Up to 60 kg | Up to 55 kg |
Length | 7’1″ / 215.9 cm | 6’5″ / 195.6 cm | 5’8″ / 172.7 cm | 5’2″ / 157.5 cm | 4’8″ / 142.2 cm | 4’4″ / 132.1 cm |
Width | 32″ / 81.3 cm | 28.5″ / 72.4 cm | 27″ / 68.6 cm | 26″ / 66.0 cm | 25″ / 63.5 cm | 24″ / 61.0 cm |
Tail Width | 23.5” / 59.7 cm | 21.6” / 54.8 cm | 23.5″ / 59.7 cm | 21″ / 53.3 cm | 21” / 53.3 cm | 21.8″ / 55.4 cm |
Volume | 140 L | 115 L | 95 L | 80 L | 65 L | 50 L |
Footstrap | Can be purchased after-market for ASAP and Lite Tech | Included with Blue Carbon and can be purchased after-market for Lite Tech | Included with Blue Carbon and can be purchased after-market for Lite Tech | Included with Blue Carbon and can be purchased after-market for Lite Tech | Included with Blue Carbon and can be purchased after-market for Lite Tech | Included with Blue Carbon and can be purchased after-market for Lite Tech |
Fin Set Up | US Box 14″ | US Box 14″ | US Box 14″ | US Box 14″ | US Box 14″ | US Box 14″ |
Fins | Foil not included | Foil not included | Foil not included | Foil not included | Foil not included | Foil not included |
Weight | Lite Tech: 10.3 kg (Est.) ASAP: 11.0 kg (Est.) |
Blue Carbon: 7.0 kg (Avg.) Lite Tech: 8.7 kg (Est.) |
Blue Carbon: 6.8 kg (Est.) Lite Tech: 7.8 kg (Est.) |
Blue Carbon: 5.6 kg (Avg.) Lite Tech: 7.0 kg (Est.) |
Blue Carbon: 5.0 kg (Avg.) Lite Tech: 6.4 kg (Est.) |
Blue Carbon: 4.9 kg (Est.) |
Board weight tolerance: Blue Carbon +/- 5% , Lite Tech +/- 6%
*Rider weights estimated for entry-intermediate rider in medium wind conditions
*Rider weight considers the weight of the board and foil at an average 10kg.
