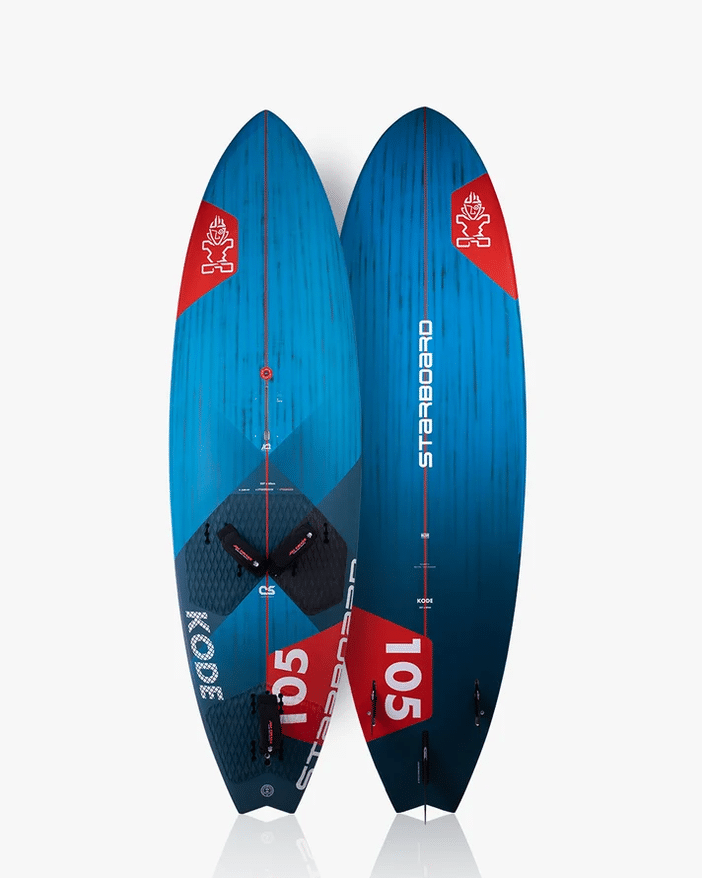

Starboard KODE
KODE 145 – THE AGILE EXPERIENCE
If you enjoy a larger size Freeride board, the KODE 145 promises you a new level of satisfaction. Tuned with a single fin, you feel an incredibly “free” board underfoot. We’ll see you smiling through your first autopilot gybe, thanks to the curved outline and easy, confidence inspiring rounded rails.
The shorter length increases your sense of agility, and with responsive thruster setup, you’ll gybe like never before and chasing small waves to ride. Jump on board with 6 to 8.5 meter sails and ask yourself how a board can make such a difference in sensation.
VERSATILITY. BUILT IN
All KODE’s come equipped with Powerbox centre and lightweight Starbox side thruster fin boxes except the 85 liters with a US box due to the slim tail. Faster assembly, more accurate fin setup and tuning… Our Starbox is compatible with US.
CARBON SANDWICH, PERFORMANCE X VALUE
Each KODE underside is laminated with 2 layers of Glass with different angles for optimized flex, while the deck is 60% UD 80g carbon to have a responsive deck.
SIDE FIN BOXES MOVED 3.5 CM FORWARD
The new KODE revised the side finbox position 3.5 cm further forward in order to make it more agile and aggressive when it comes to wave use.
HAVE IT ALL YOUR WAY

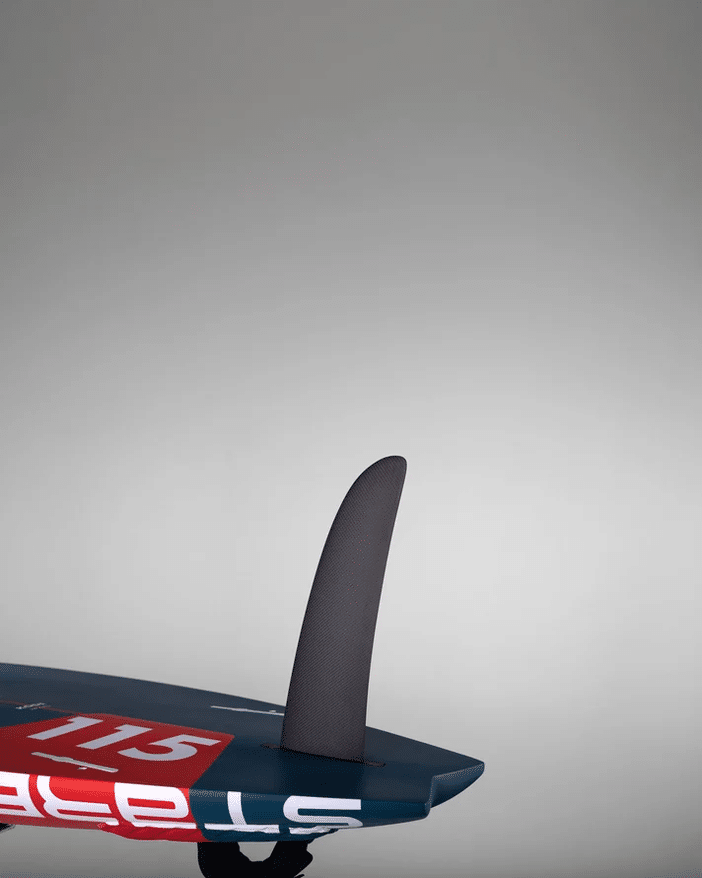

Thruster for reactive turns and wave action. Single fin for early planing and fun, fast freeride. All Carbon Sandwich KODE are supplied with both thruster and single fin set options. Wood Sandwich KODE 85, 95 & 105 supplied with thruster fins. Larger Wood Sandwich KODE 115, 125, 135 and 145 are supplied with single fin.
PLAY HARDER. FOR LONGER

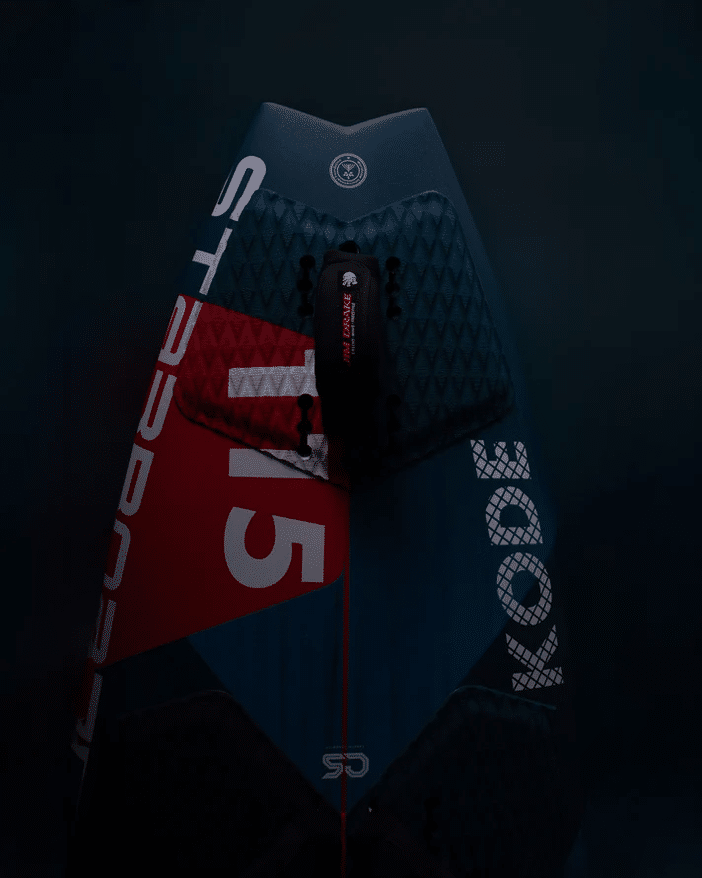

Premium Jim Drake footstraps manufactured from certified natural Yulex-foam, the smoothest fabric for a comfortable ride. Under your feet,10mm thick footpads with diamond grooving pattern provide positive grip, maximising comfort over extended sessions while being resistant to wear-and-tear.
SMART COLOR SET-UP
Wave: Adjust your mast base and footstraps around the white marks.
FreeWave: Adjust your mast base and footstraps around the pink marks.
Freeride: Adjust your mast base and footstraps around the dark red marks.

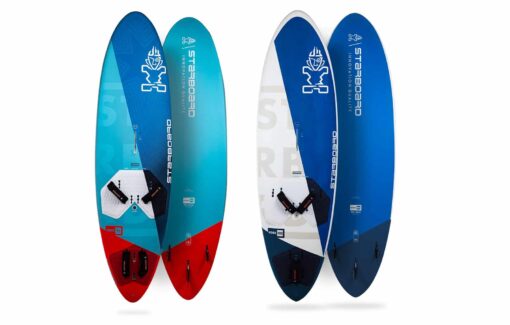

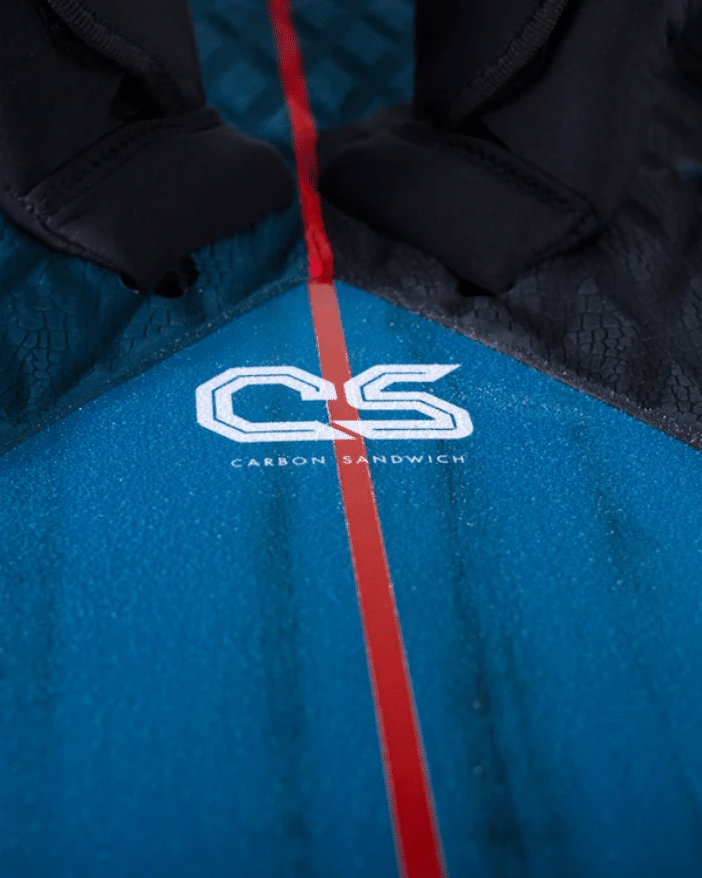

Carbon Sandwich
PERFORMANCE VALUE
Each Kode underside is laminated in full T700 unidirectional flat-woven carbon for optimized flex, while the deck is 60% carbon, alternating between unidirectional and bi-axial carbon. Advanced composite sandwich layers utilise only high grade PVC foam, enhancing performance, strength and durability. The result is the lightest construction delivering a structurally strong board offering a precise, controlled and responsive ride. Comfortable, direct and efficient.
| Model | KODE 85 | KODE 95 | KODE 105 | KODE 115 | KODE 125 | KODE 135 | KODE 145 |
|---|---|---|---|---|---|---|---|
| Volume | 85 L | 95 L | 105 L | 115 L | 125 L | 135 L | 145 L |
| Length | 226 cm | 228 cm | 229 cm | 230 cm | 231 cm | 232 cm | 233 cm |
| Width | 60 cm | 62 cm | 65 cm | 67.5 cm | 69.5 cm | 72 cm | 77 cm |
| Tail Width | 38.9 cm | 39.8 cm | 41.8 cm | 43.1 cm | 44.5 cm | 45.7 cm | 48.6 cm |
| Thickness | 12 cm | 12.5 cm | 13.3 cm | 13.9 cm | 14.6 cm | 14.9 cm | 14.6 cm |
| Shape | Vee Double Concave to Double Concave in Mono Concave |
Vee Double Concave to Double Concave in Mono Concave |
Vee Double Concave to Double Concave in Mono Concave |
Vee Double Concave to Double Concave in Mono Concave |
Vee Double Concave to Double Concave in Mono Concave |
Vee Double Concave to Double Concave in Mono Concave |
Vee Double Concave to Double Concave in Mono Concave |
| Fin Box | 2 x StarBox 13.5 + US Box |
2 x StarBox 13.5 + Power Box |
2 x StarBox 13.5 + Power Box |
2 x StarBox 13.5 + Power Box |
2 x StarBox 13.5 + Power Box |
2 x StarBox 13.5 + Power Box |
2 x StarBox 13.5 + Power Box |
| Fin | Drake Natural Wave 11 + MFC TF 20 US |
Drake Natural Wave 11 + MFC TF 21 |
Drake Natural Wave 11 + Rush 22 |
Drake FreeRide Power Carbon 34 |
Drake FreeRide Power Carbon 36 |
Drake FreeRide Power Carbon 38 |
Drake FreeRide Power Carbon 40 |
| Sail Range | 4.0 – 6.0 m² | 4.5 – 6.5 m² | 5.0 – 7.0 m² | 5.5 – 7.5 m² | 6.0 – 8.0 m² | 6.5 – 8.5 m² | 7.0 – 9.0 m² |
| Weight Carbon Sandwich | 6.5 kg | 6.6 kg | 6.9 kg | 7.1 kg | 7.7 kg | 8.0 kg | 8.3 kg |
| KODE | Technology | CARBON SANDWICH | CARBON SANDWICH | CARBON SANDWICH | CARBON SANDWICH | CARBON SANDWICH | CARBON SANDWICH | CARBON SANDWICH |
|---|---|---|---|---|---|---|---|---|
| Model | KODE 85 CS | KODE 95 CS | KODE 105 CS | KODE 115 CS | KODE 125 CS | KODE 135 CS | STB WS KODE 145 CS | |
![]() |
FIN | 1 X MFC TF 20 CENTER [NUSS] G-10 BLACK
1 PAIR X NATURAL WAVE 11 L,R [SVB] BLACK |
N/A | N/A | N/A | N/A | N/A | N/A |
![]() |
FIN | N/A | 1 X MFC TF 21 CENTER [PB] G-10 BLACK
1 PAIR X NATURAL WAVE 11 L,R [SVB] BLACK |
N/A | N/A | N/A | N/A | N/A |
![]() |
FIN | N/A | N/A | 1 X STAR RUSH 22 CM [PB]G-10 BLACK
1 PAIR X NATURAL WAVE11 L,R [SVB] BLACK |
N/A | N/A | N/A | N/A |
![]() |
FIN | N/A | N/A | N/A | 1 X DRAKE FREERIDE POWER CARBON 34 [PB] | 1 X DRAKE FREERIDE POWER CARBON 36 [PB] | 1 X DRAKE FREERIDE POWER CARBON 38 [PB] | 1 X DRAKE FREERIDE POWER CARBON 40 [PB] |
![]() |
SCREW M5X15 | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. |
![]() |
SCREW M4X22 WITH BRASS WASHER | 1 PC. | N/A | N/A | N/A | N/A | N/A | N/A |
![]() |
SCREW M4X14 WITH BRASS WASHER | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. |
![]() |
SCREW M6X50 TORX WITH RUBBER WASHER AND WASHER STL 6.2X15X1.5 | N/A | 1 PC. | 1 PC. | 1 PC. | 1 PC. | 1 PC. | 1 PC. |
![]() |
STAR BOX BASE 13.5 | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. |
![]() |
JIM DRAKE DELUXE STRAP FLOURO ORANGE | 4 PCS. | 4 PCS. | 4 PCS. | 4 PCS. | 4 PCS. | 4 PCS. | 4 PCS. |
![]() |
K9 ANTI TWIST | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. |
![]() |
SCREW M7X32 TORX | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. |
![]() |
DRAKE OFFSET FOOTSTRAP NEW LONG WASHER | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. | 8 PCS. |
![]() |
STAR BRASS PLATE M4 | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. | 2 PCS. |
![]() |
AIR VALVE TORX WITH O-RING | 1 PC. | 1 PC. | 1 PC. | 1 PC. | 1 PC. | 1 PC. | 1 PC. |
![]() |
T-HANDLE TORX | 1 PC. | 1 PC. | 1 PC. | 1 PC. | 1 PC. | 1 PC. | 1 PC. |
