THE PHANTOMS AT A GLANCE
PHANTOM 377 AND 377L

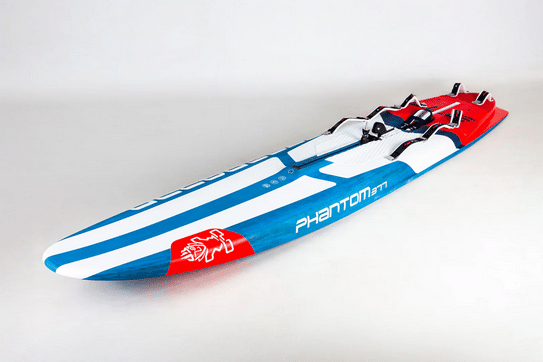

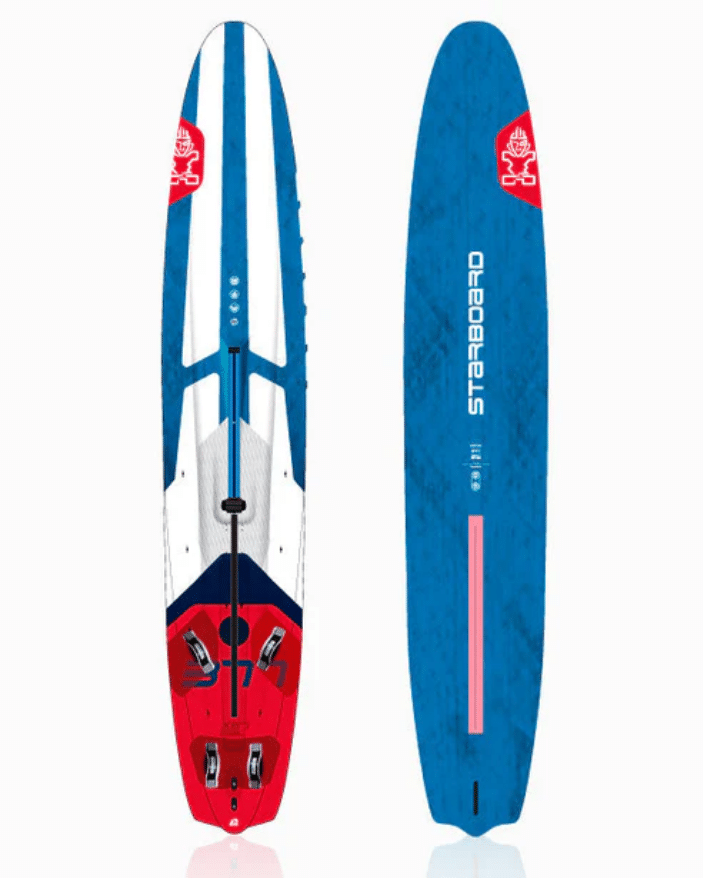

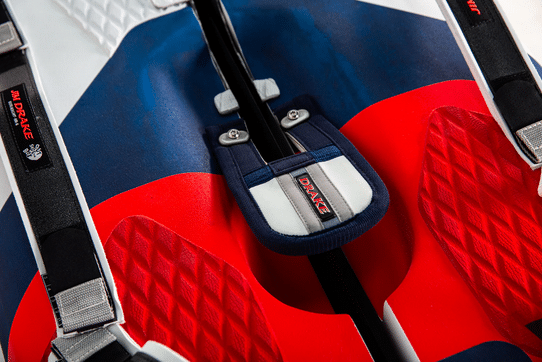

New Phantom 377 (376×66.6, 282 litres): The mast track has been moved 3.5cm further back and the daggerboard is closer to the mast track by 1.3cm. This new geometry gives you a more nervous and tactical board and a higher nose trim that allows you to ride over chops upwind and get quicker on the rail. With the new mast track position, both the 377 and 377L are now able to go faster when reaching and going downwind by riding higher on the water and decreasing their wetted-surface area. We have also reworked the outline of the new 377 to be more inspired by the 377L, with new bat wings shapes that provide more grip off the fin. Both models come with a new blue mast track system that is easier and stronger to use. The user-replaceable lips continue, making them easy to maintain over time. Available exclisively in Carbon Reflex Sadnwich. Get Ready to Race.
THE FLAGSHIP CONSTRUCTION
377 and 377L are available in Carbon Reflex, our lightest, most exclusive and a limited-edition flagship construction built with the lightest biaxial carbon.

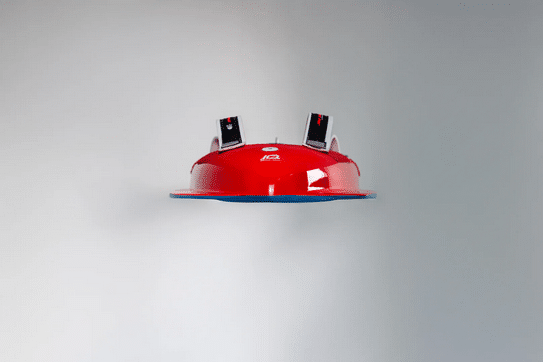

The flat Vee bottom shape of the Phantoms absorbs chop, improves tracking and helps the board roll onto its rail.
DRAKE READY TO RACE

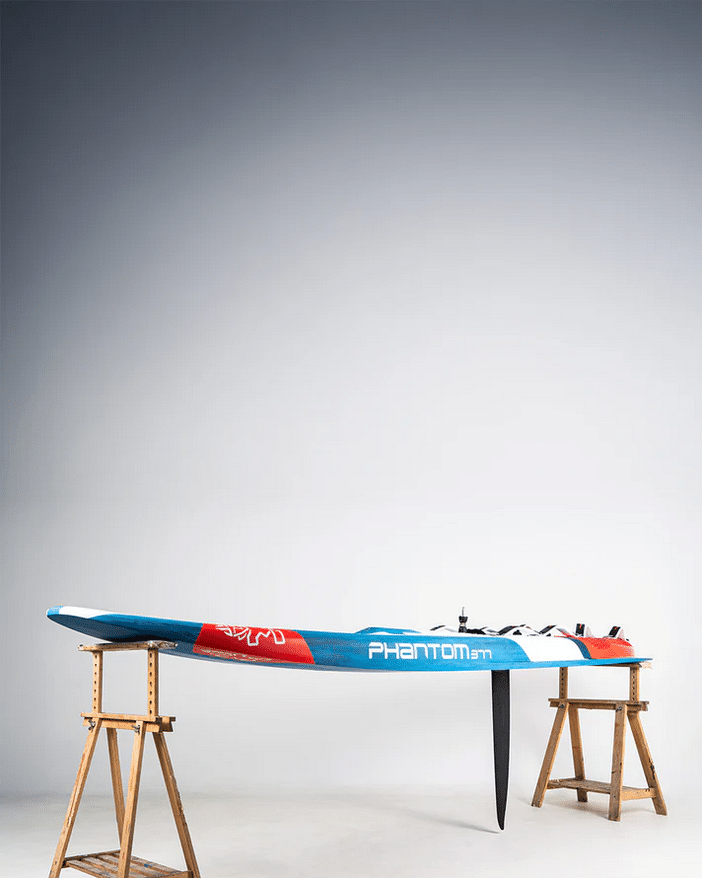

The Phantom 377 and Phantom 377 L are supplied with the Drake Race 52 Ready to Race fins. They have an extremely quick and efficient foil with a near vertical rake angle that generates massive power for early planing, accelerations and deep angles.
As mentioned above, the daggerboard is placed 2 cm further forward on the Phantom 377 L to help make the board more sensitive in light winds. All Phantoms are supplied with a Drake Daggerboard 78 cm for optimum all-round performance.
|Models||Phantom 377||Phantom 377 L|
|Technologies||Carbon Reflex Sandwich||Carbon Reflex Sandwich|
|Volume||267 L||331 L|
|Length||377 cm||377 cm|
|Width||67 cm||67.5 cm|
|Tail Width||49.1 cm||49.5 cm|
|Thickness||19.7 cm||23.2 cm|
|Bottom Shape||Flat Vee||Flat Vee|
|Fin||Drake Race 52 cm||Drake Race 52 cm|
|Finbox||Deep Tuttle Box||Deep Tuttle Box|
|Fin Range||42 – 56 cm||42 – 56 cm|
|DaggerBoard||DaggerBoard 78||DaggerBoard 78|
|Sail Range||6.5 – 9.5 m2||6.5 – 9.5 m2|
|Weight Carbon Reflex||14.4 kg||15.6 kg|
