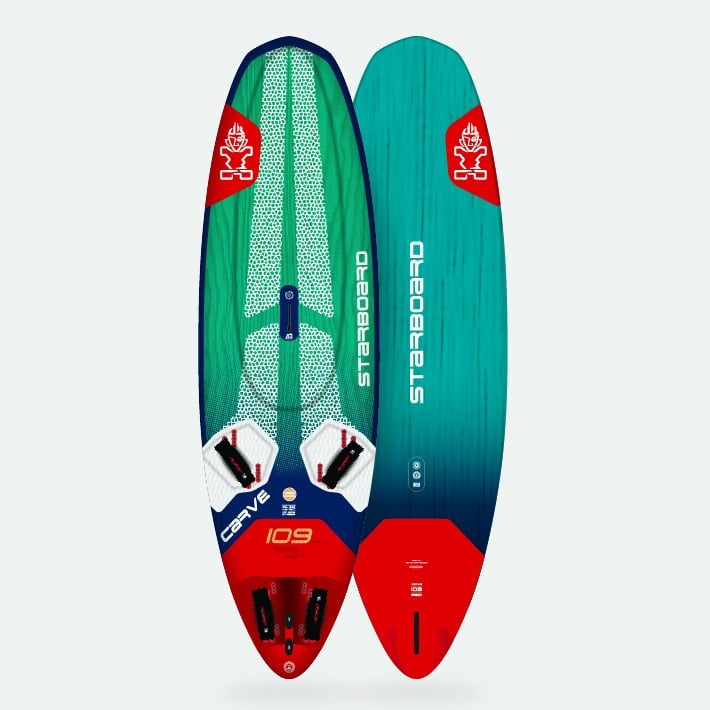

Starboard CARVE 2025
AS GOOD AS IT GETS!
Easy planing. Confident control. Autopilot jibes. The 2025 CARVEs deliver big on effortless planing, autopilot jibing and a controlled ride in any conditions.
THE CARVE IN DETAIL
The exciting 2025 CARVEs deliver big on effortless planing, autopilot jibing and a controlled ride in any conditions. We never felt so accomplished about a board range. Each board individually shaped for the intended conditions and skill level. On the larger sizes, a long flat section makes for extra easy passive planing and a smooth ride to let you find the footstraps effortlessly. Midrange sizes carve like a small board, yet switching your stance and flipping the sail you have the confidence of a bigger board, thanks to a combination of thinned out rails towards the tail and thicker forward rails. The small sizes deliver a true sporty feel with higher top end speed and that extra bit of control you’ll need for windsurfing confidently in strong wind.
LIGHTWEIGHT BOARDS DESIGNED FROM THE GROUND UP AS OUR LOWEST CARBON FOOTPRINT
WHERE PERFORMANCE MEETS PRICE
Model | CARVE 99 | CARVE 109 | CARVE 119 | CARVE 129 | CARVE 139 | CARVE 149 | CARVE 159 | CARVE 169 |
---|---|---|---|---|---|---|---|---|
Volume | 99 L | 109 L | 119 L | 129 L | 139 L | 149 L | 159 L | 169 L |
Length | 238 cm | 238 cm | 238 cm | 238 cm | 240 cm | 247 cm | 255 cm | 258 cm |
Width | 64 cm | 67 cm | 71 cm | 76 cm | 80 cm | 80 cm | 81 cm | 84 cm |
Tail Width | 38.5 cm | 41 cm | 46.7 cm | 49.2 cm | 51.3 cm | 51.6 cm | 52.4 cm | 54.7 cm |
Thickness | 12.3 cm | 11.6 cm | 11.7 cm | 11.6 cm | 12.3 cm | 12.6 cm | 12.8 cm | 13.2 cm |
Shape | Flat Vee to Double Concave | Flat Vee to Double Concave | Flat Vee to Double Concave | Flat Vee to Double Concave | Flat Vee to Double Concave | Flat Vee to Double Concave | Flat Vee to Double Concave | Flat Vee to Double Concave |
Fin Box | Tuttle Box | Tuttle Box | Tuttle Box | Tuttle Box | Tuttle Box | Tuttle Box | Tuttle Box | Tuttle Box |
Recommended Fin | 32 – 36 cm | 34 – 38 cm | 36 – 40 cm | 38 – 42 cm | 42 – 46 cm | 42 – 46 cm | 44 – 48 cm | 46 – 50 cm |
Fin | Drake Freeride Power 34 | Drake Freeride Power 36 | Drake Freeride Power 38 | Drake Freeride Power 40 | Drake Freeride Power 44 | Drake Freeride Power 44 | Drake Freeride Power 46 | Drake Freeride Power 48 |
Sail Range | 4.0 – 7.0 m² | 4.5 – 7.5 m² | 5.0 – 8.0 m² | 5.5 – 8.5 m² | 6.0 – 9.0 m² | 6.0 – 9.0 m² | 6.0 – 9.0 m² | 6.5 – 9.5 m² |
Weight WS | 6.8 Kg | 7.1 Kg | 7.5 Kg | 7.8 Kg | 8.4 Kg | 8.6 Kg | 8.9 Kg | 9.2 Kg |
Weight SC | 7.8 Kg | 8.2 Kg | 8.7 Kg | 9.0 Kg | 9.5 Kg | 10.1 Kg | 10.3 Kg | 10.7 Kg |
Estimated weights shown to one decimal place/Average weights shown to two decimal places
Carbon Reflex Sandwich, Carbon Sandwich, Wood Sandwich, StarLite Carbon : +/-5% Tolerances

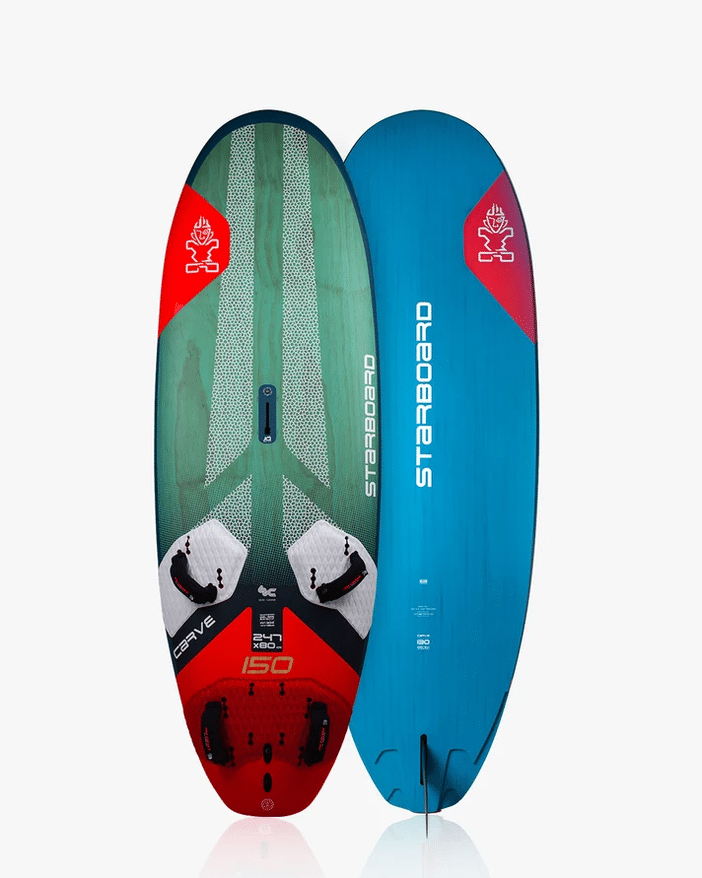

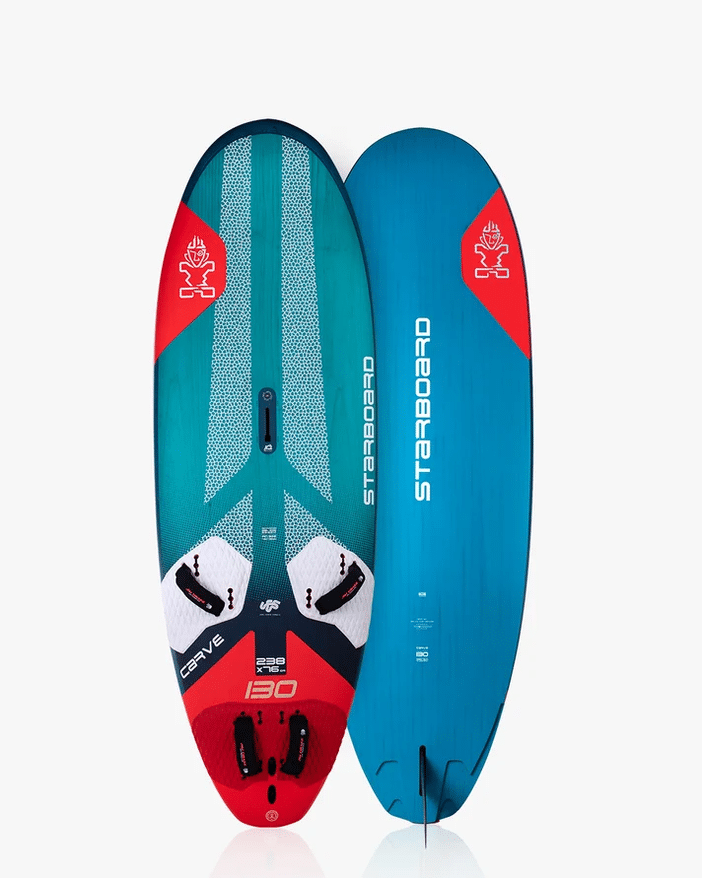

Starboard CARVE 2024

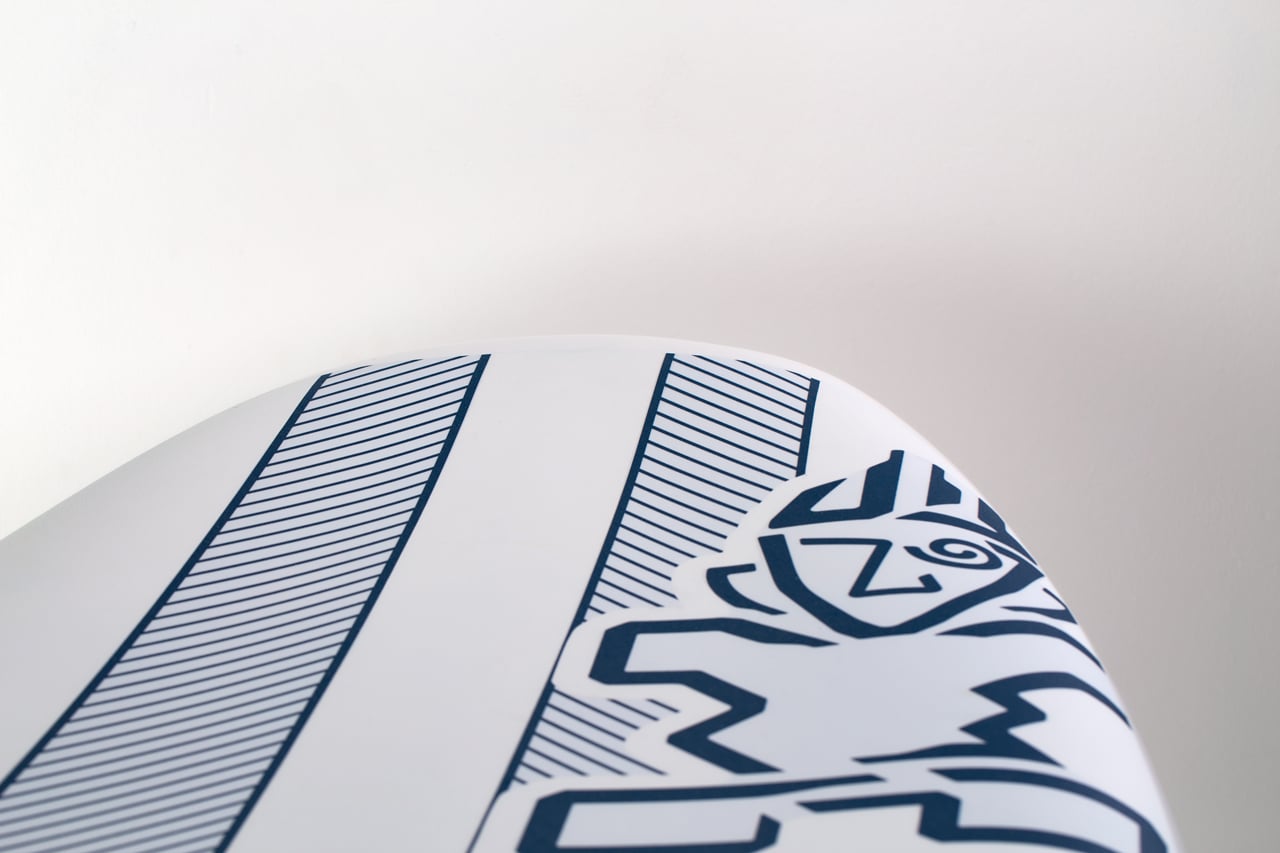

SPORTY NOSE
Look at that nose. Doesn’t it just look purposeful? But not only that, those concaves smooth impact and create more lift, improving planing performance in light wind.
GRAVITY CONTROL SYSTEM
CONFIDENCE IN STORMY CONDITIONS

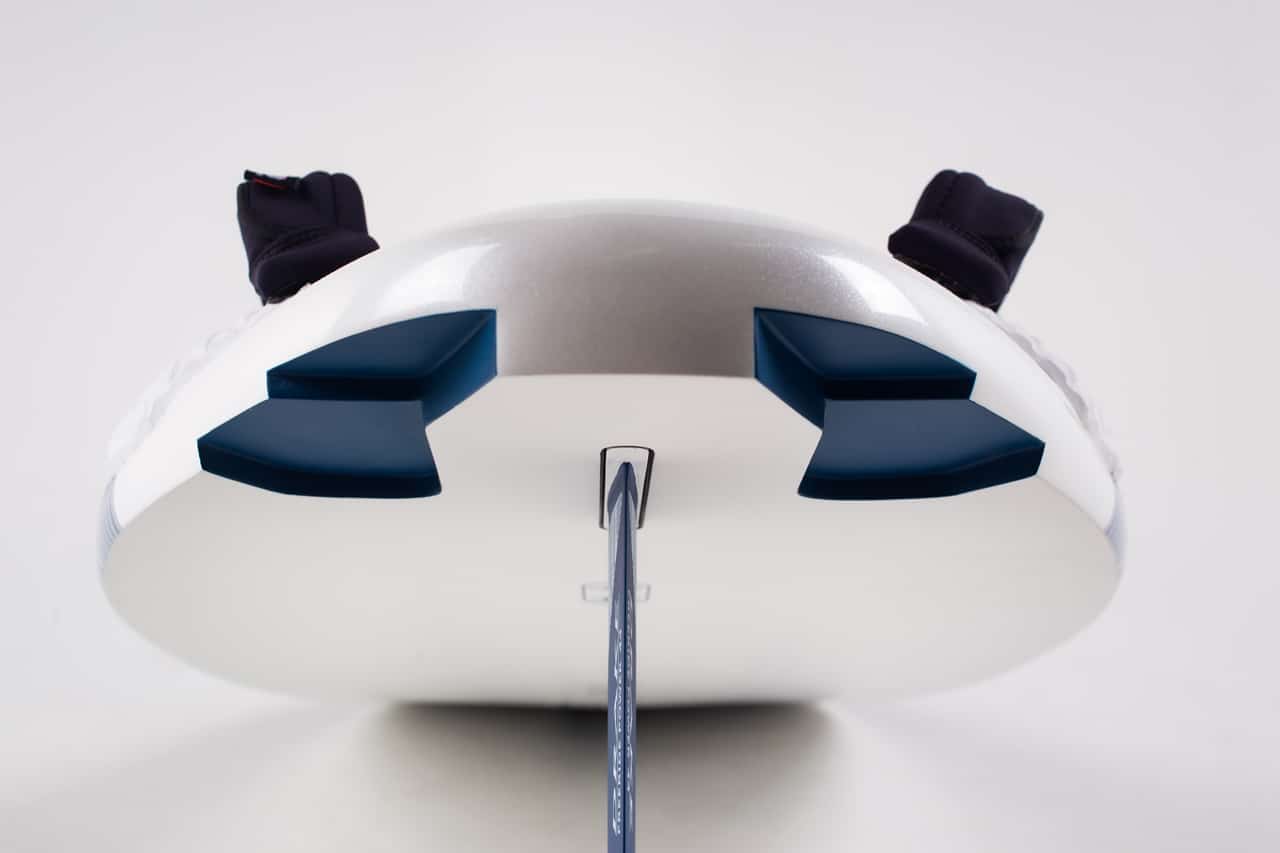

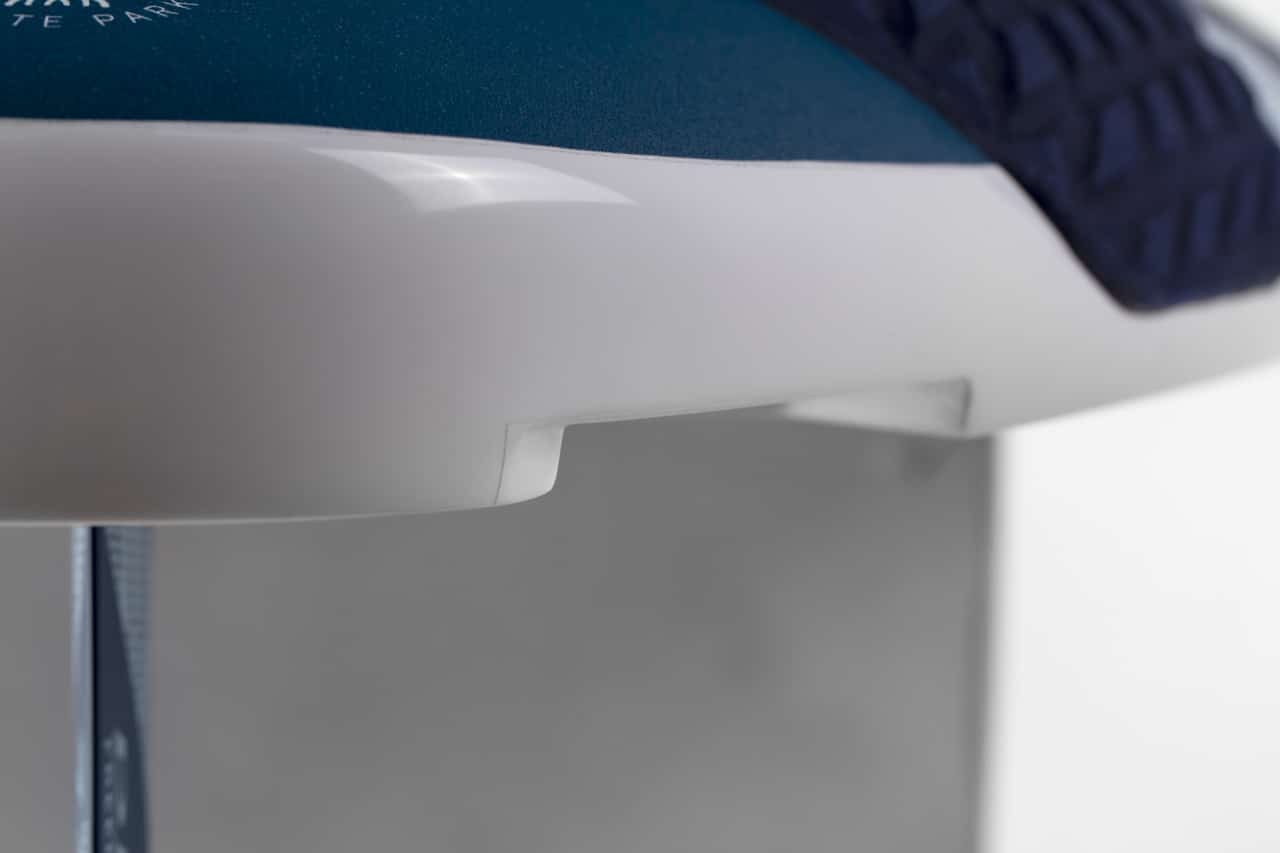

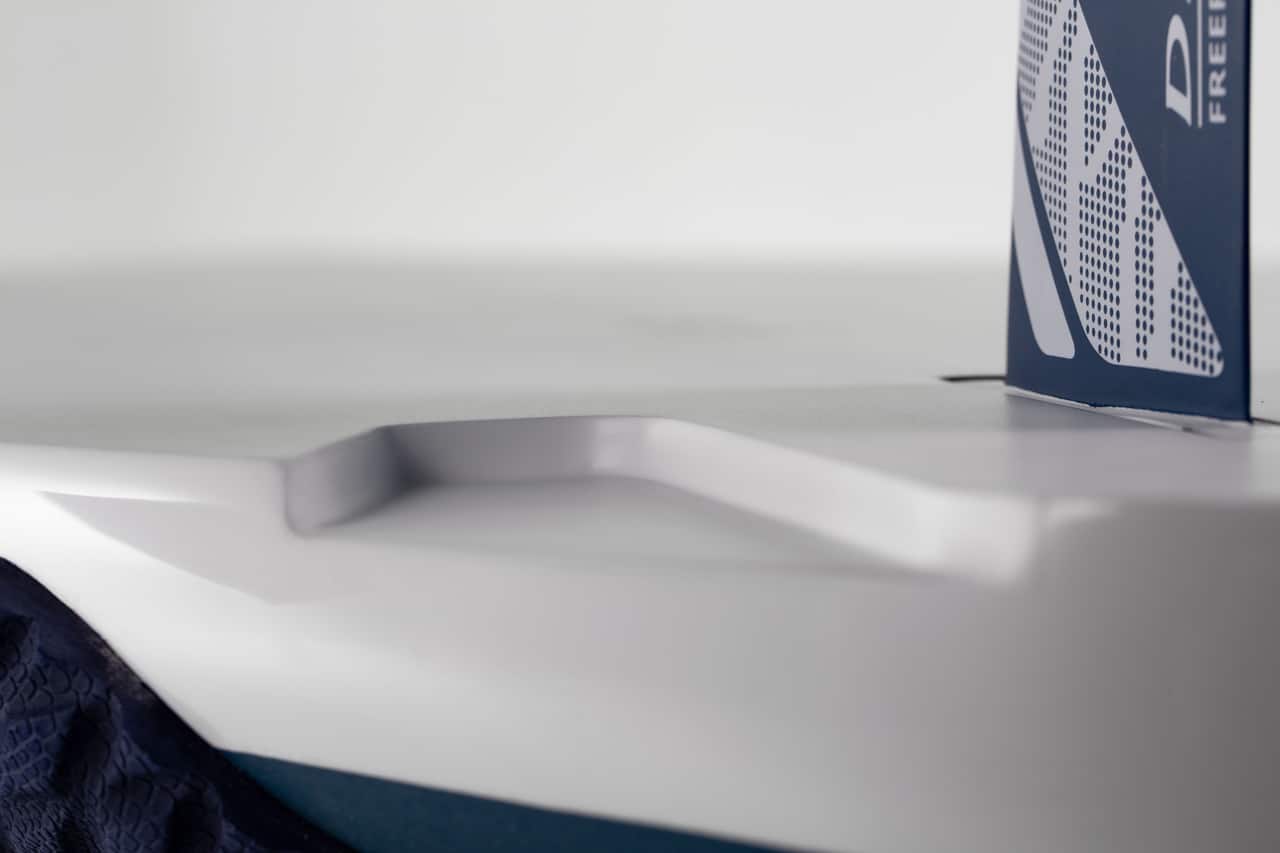

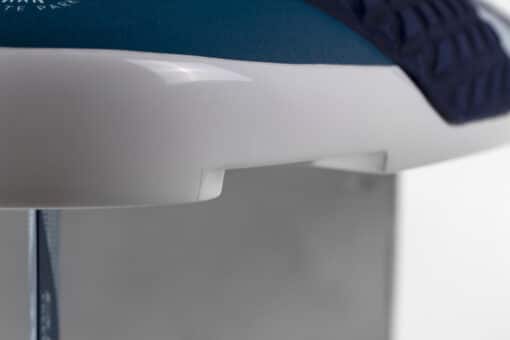

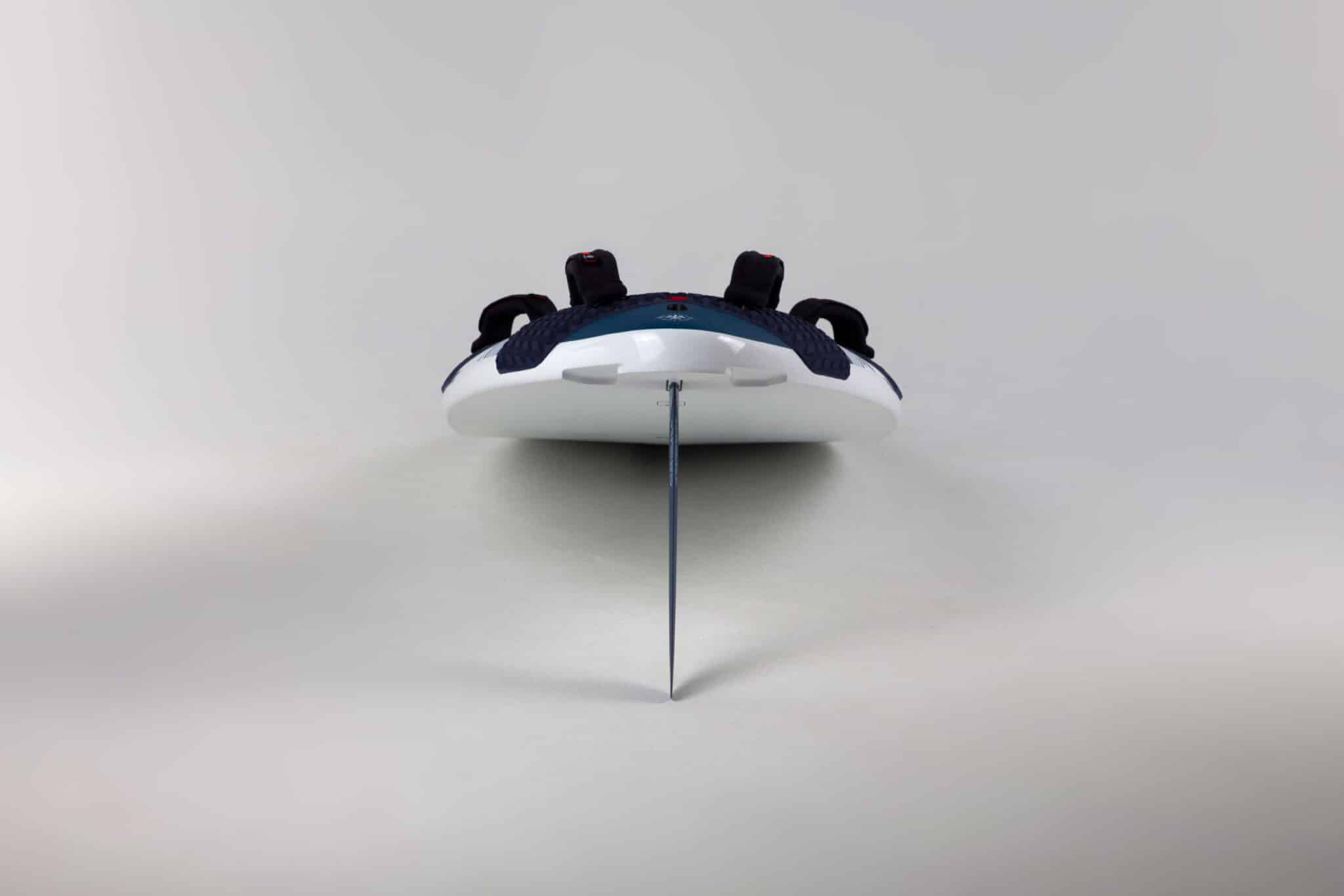

CUTAWAYS

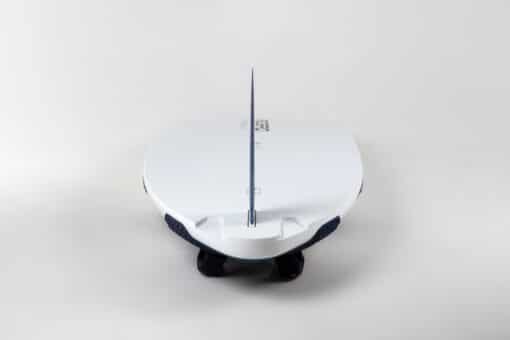

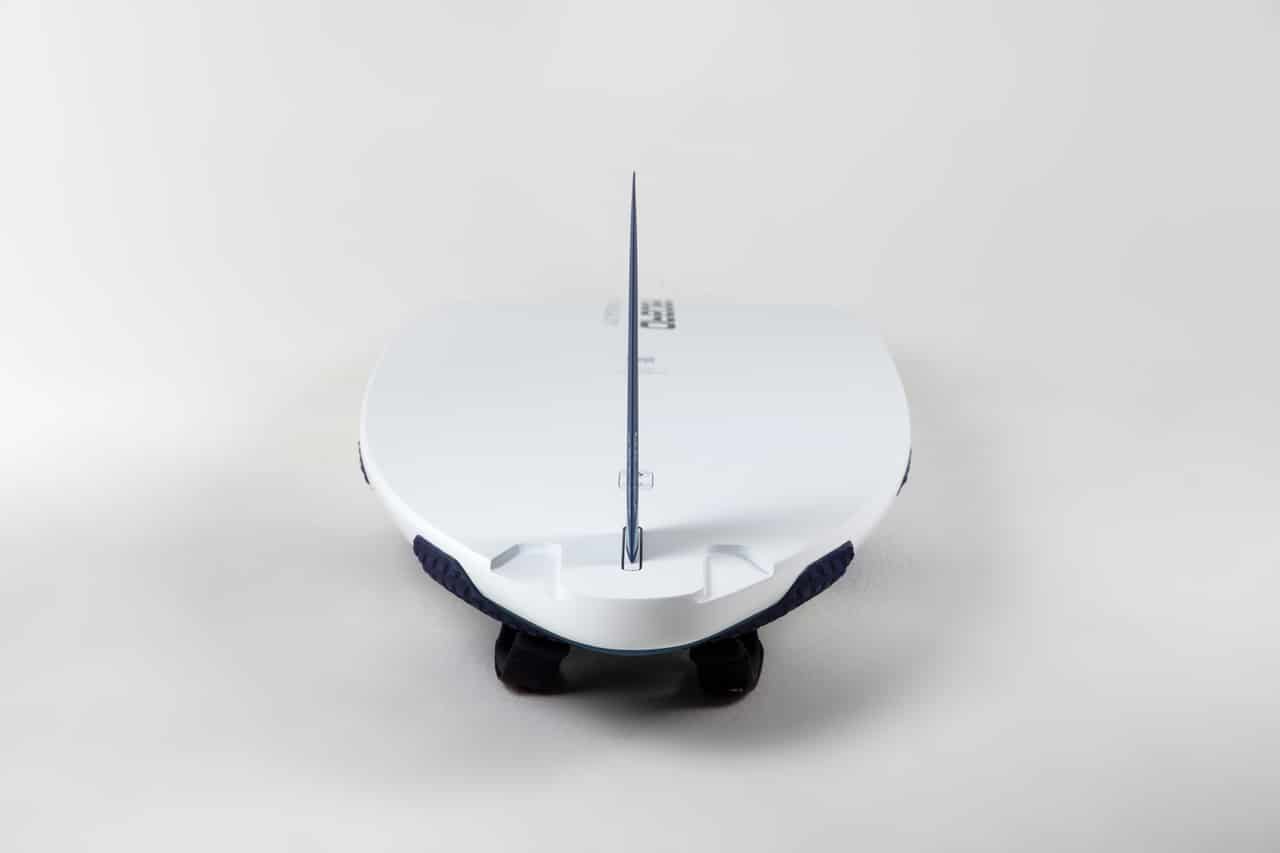

WATER DROP TAIL

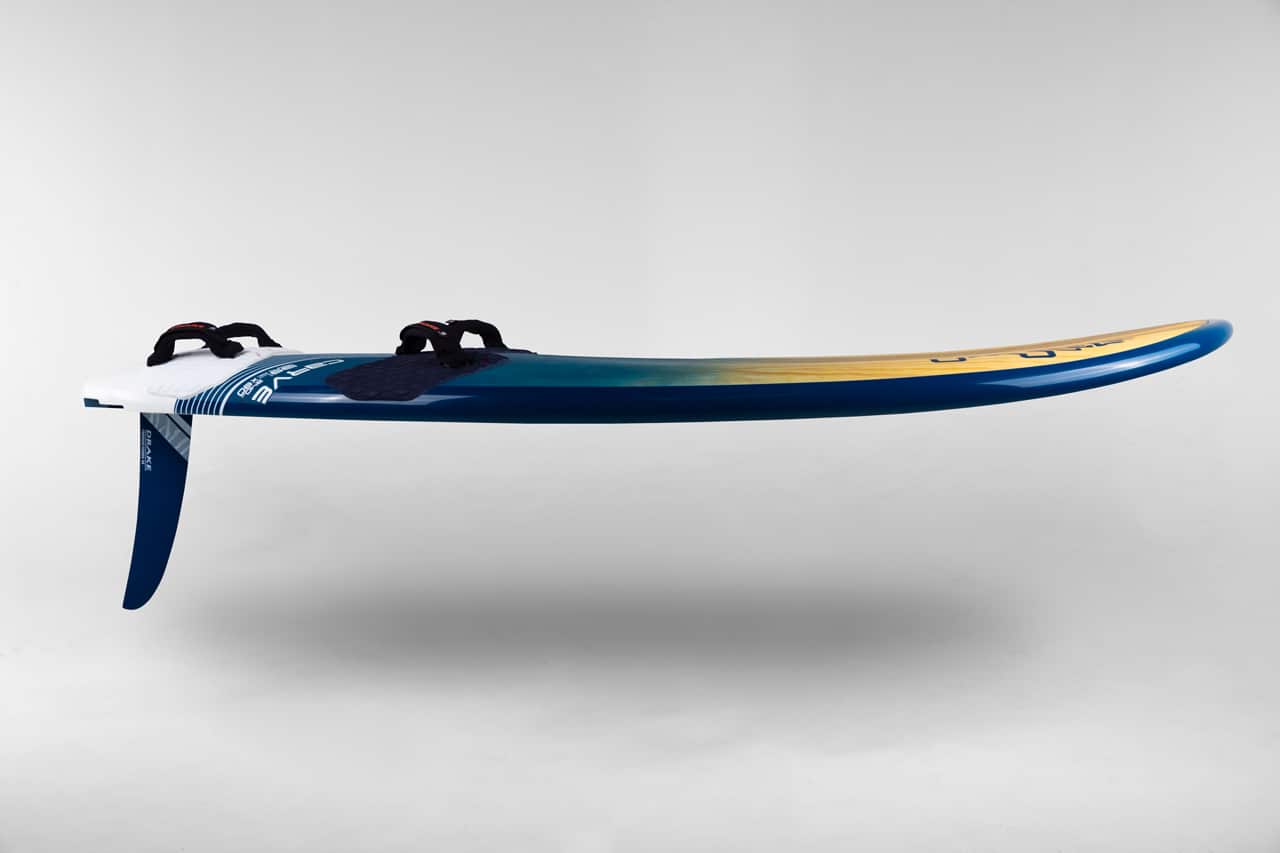

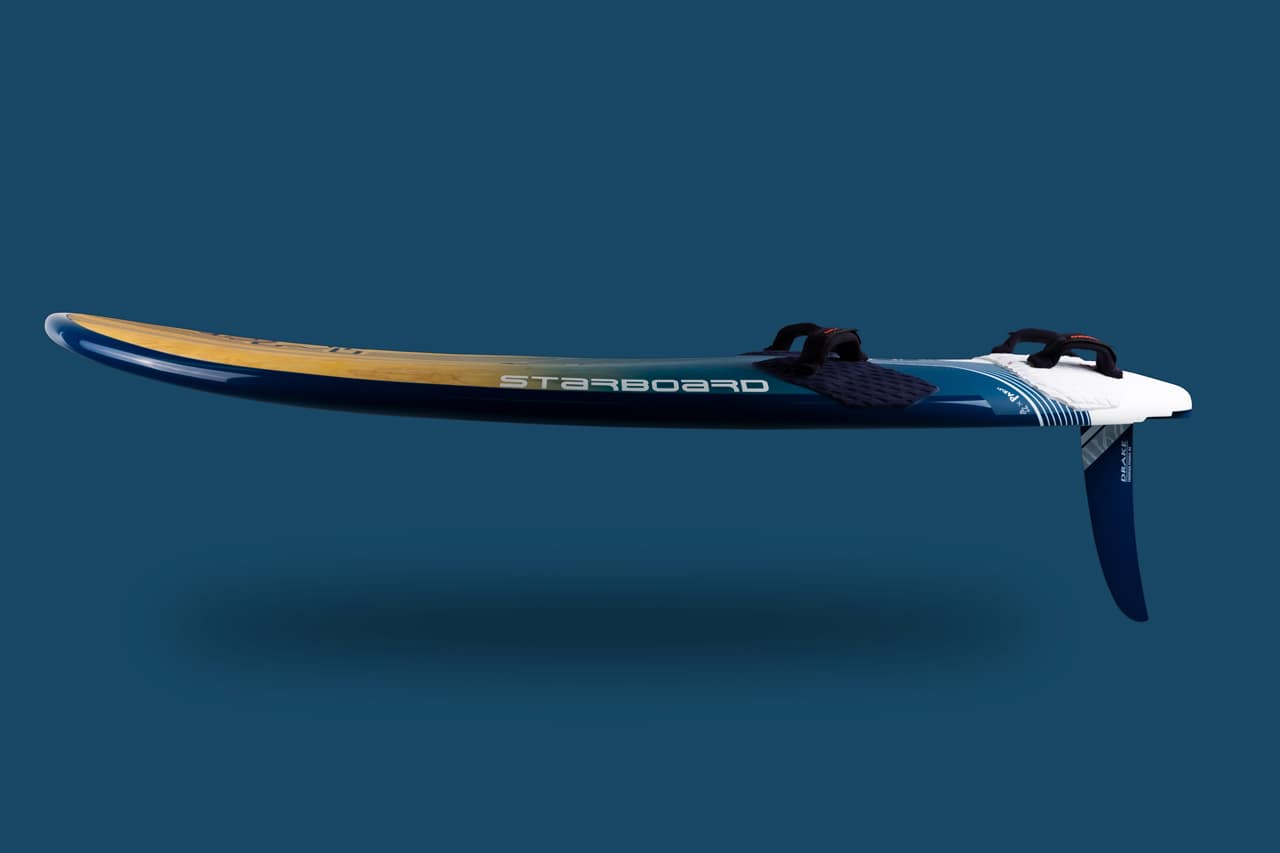

EXTENDED ROCKER FLAT

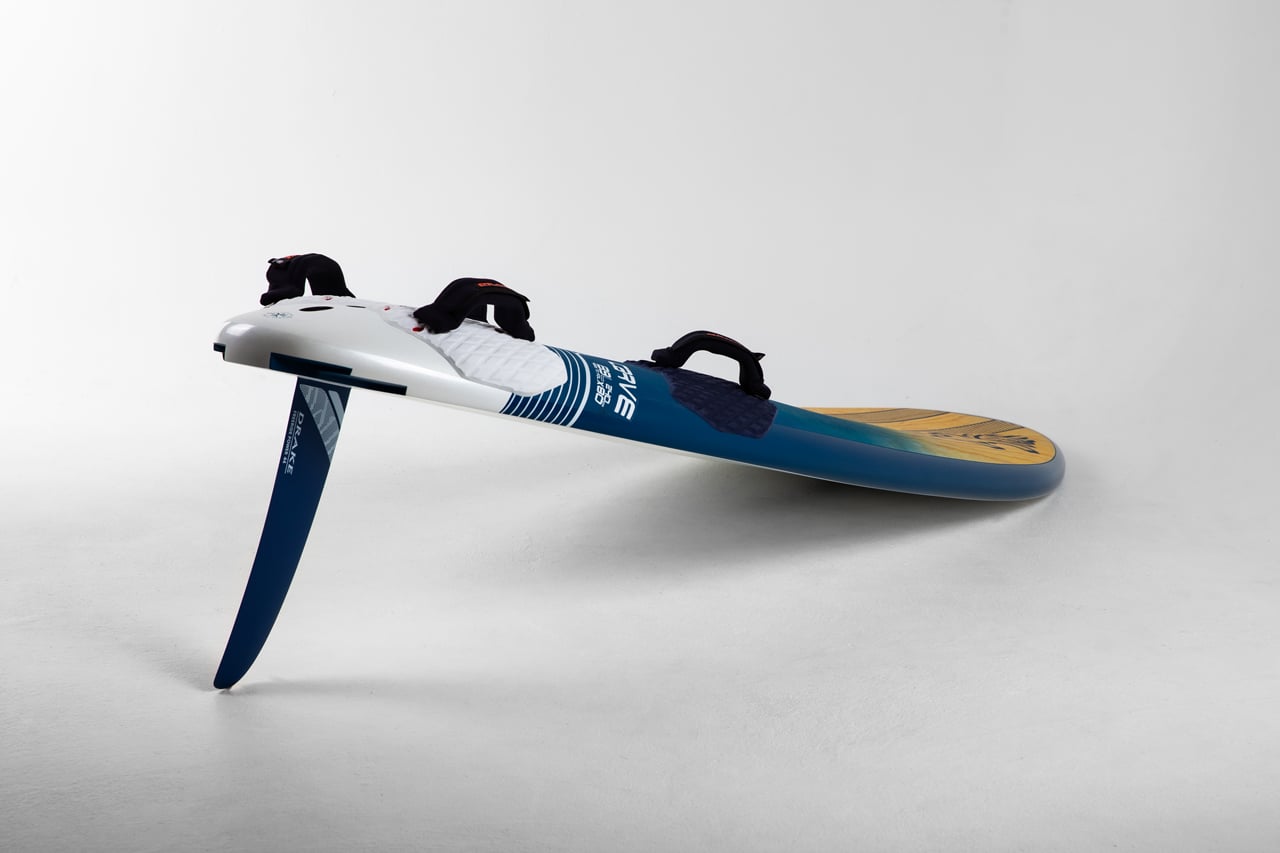

A LOCKED AND COMFORTABLE STANCE
Carefully sourced with the smoothest fabric for a comfortable feel.
Under your feet the 10mm thick footpads with a diamond grooving pattern will provide the necessary grip and comfort over extended sessions while being resistant to wear-and-tear.

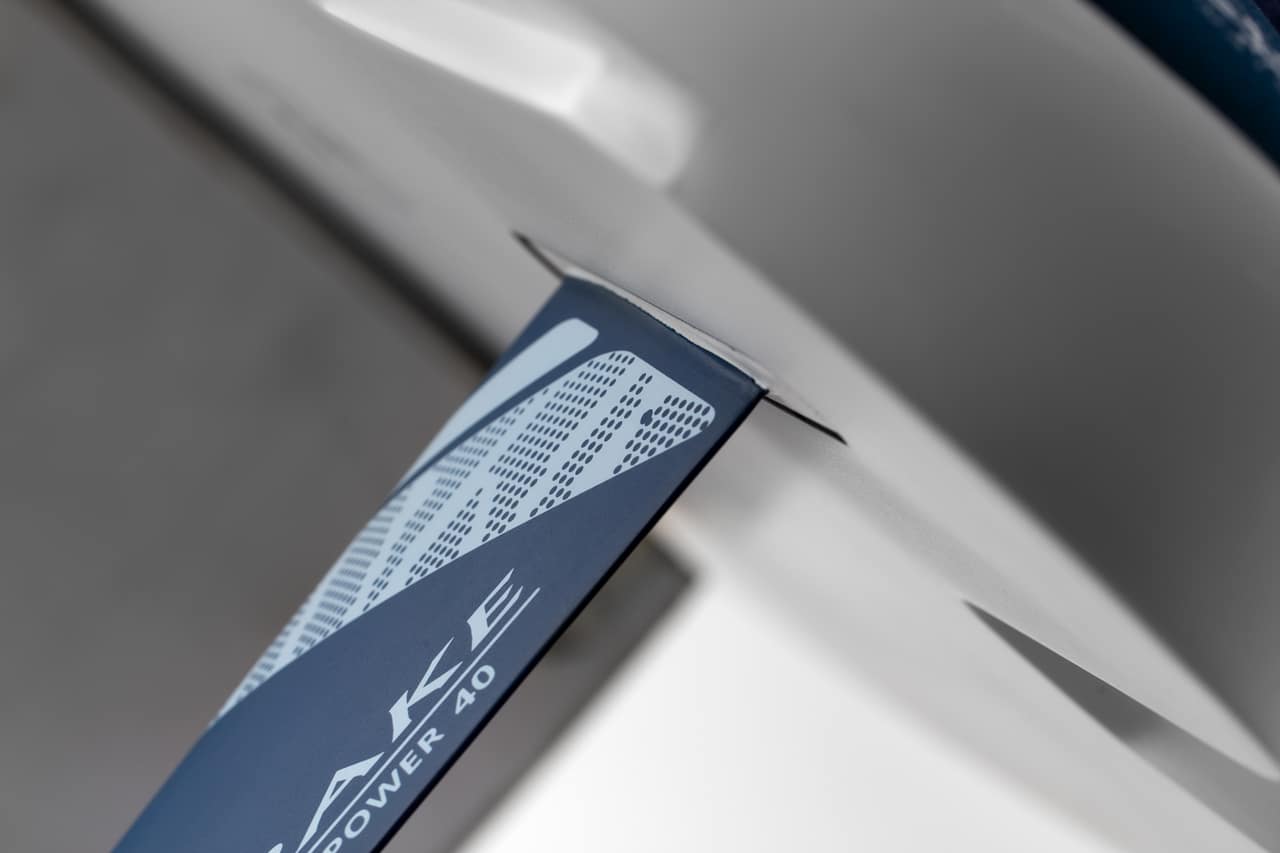

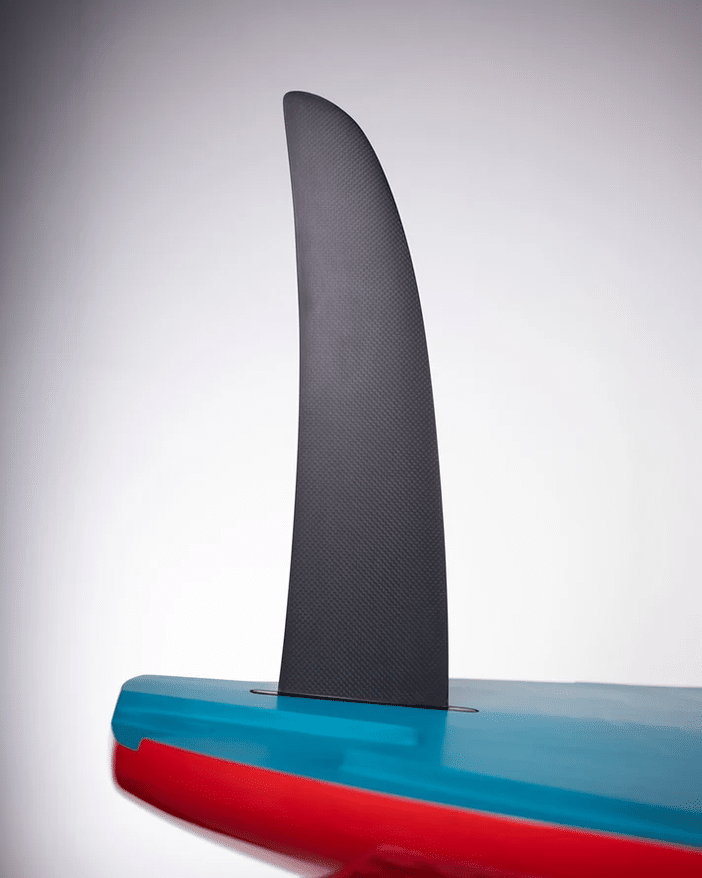

DRAKE FREERIDE FIN

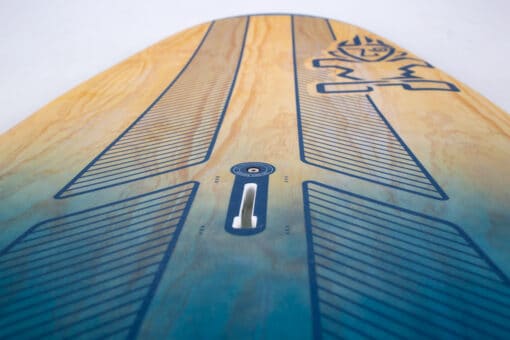

139 & 149 WS FOIL READY

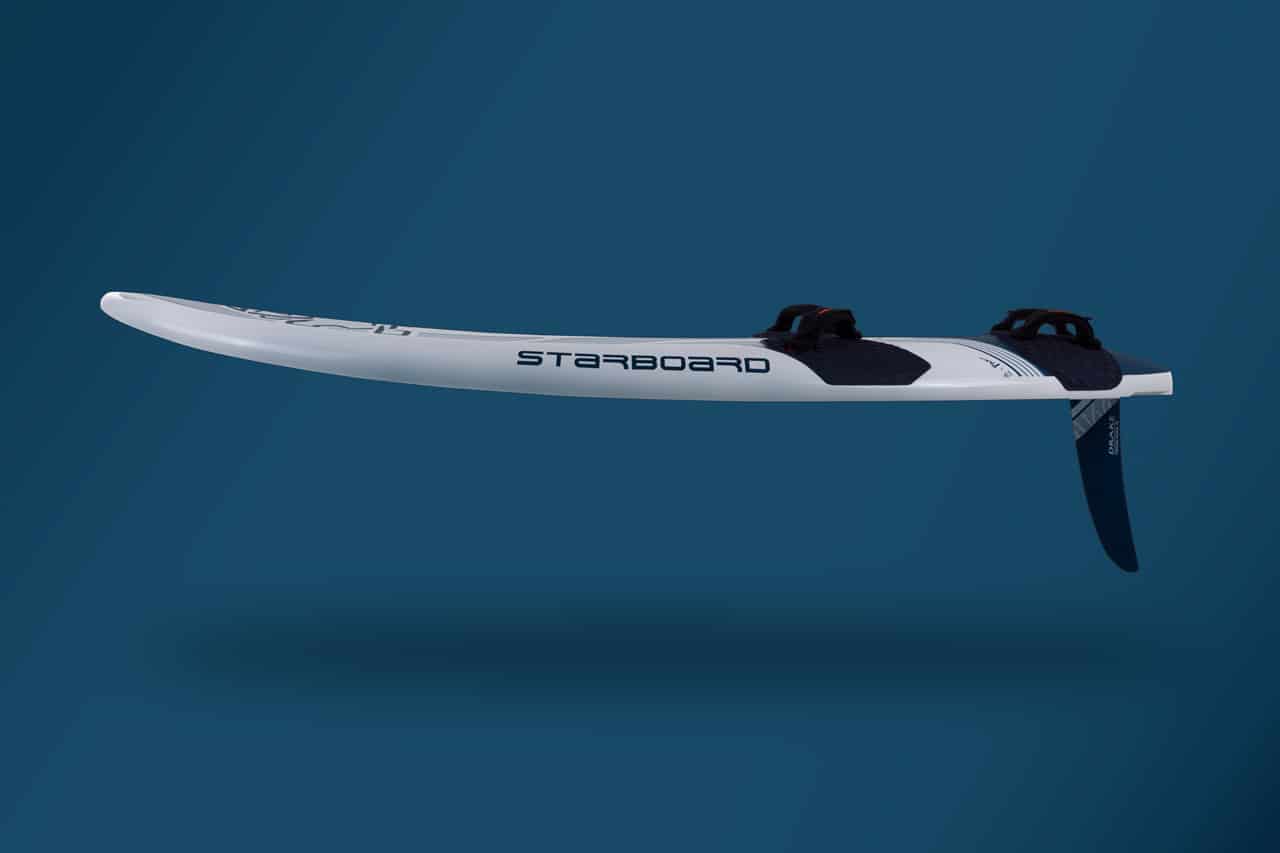

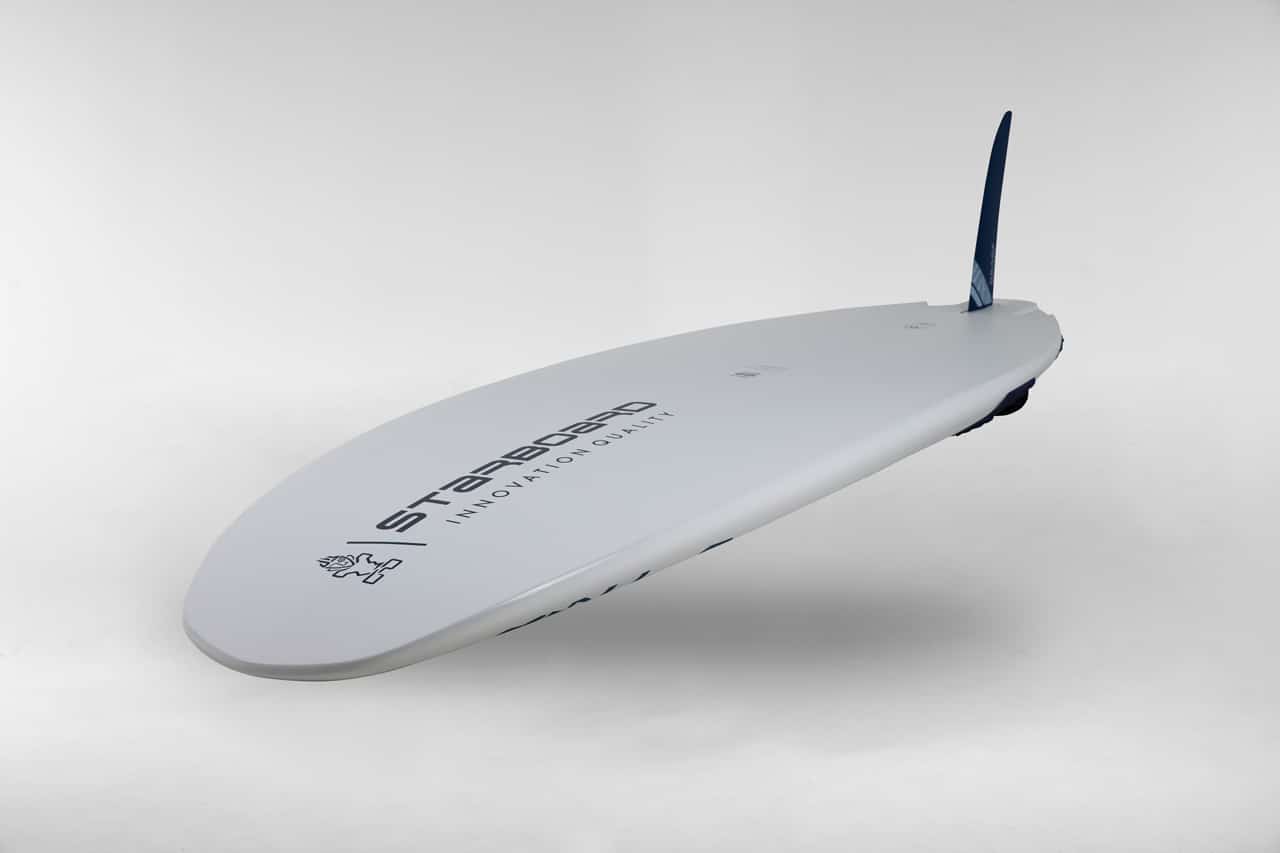

STARLITE CARBON
WHERE PERFORMANCE MEETS PRICE
Model
|
Carve 139
|
Carve 159
|
---|---|---|
Technologies | Wood Sandwich | Wood Sandwich | Starlite Carbon |
Volume | 139 L | 159 L |
Length | 240 cm | 255 cm |
Width | 80 cm | 81 cm |
Tail Width | 51.3 cm | 52.4 cm |
Thickness | 12.3 cm | 12.8 cm |
Bottom Shape (Tail To Nose) | Flat Vee to Double Concave | Flat Vee to Double Concave |
Footstrap Rows | 3 | 3 |
Footstraps | 4x Slick Straps Yulex Flouro Red | 4x Slick Straps Yulex Flouro Red |
Fin | Drake FreeRide Power 44 | Drake FreeRide Power 46 |
Fin Box | Foil Box (Wood) / Tuttle Box (Starlite) | Foil Box (Wood) / Tuttle Box (Starlite) |
Fin Range | 42-46 | 44-48 |
Sail Range | 6.0-9.0 | 6.0-9.0 |
Weight Wood Sandwich +/- 5% | 8.54 Kg | 9.06 Kg |
Weight Starlite Carbon +/- 5% | 9.47 Kg | 10.00 Kg |
