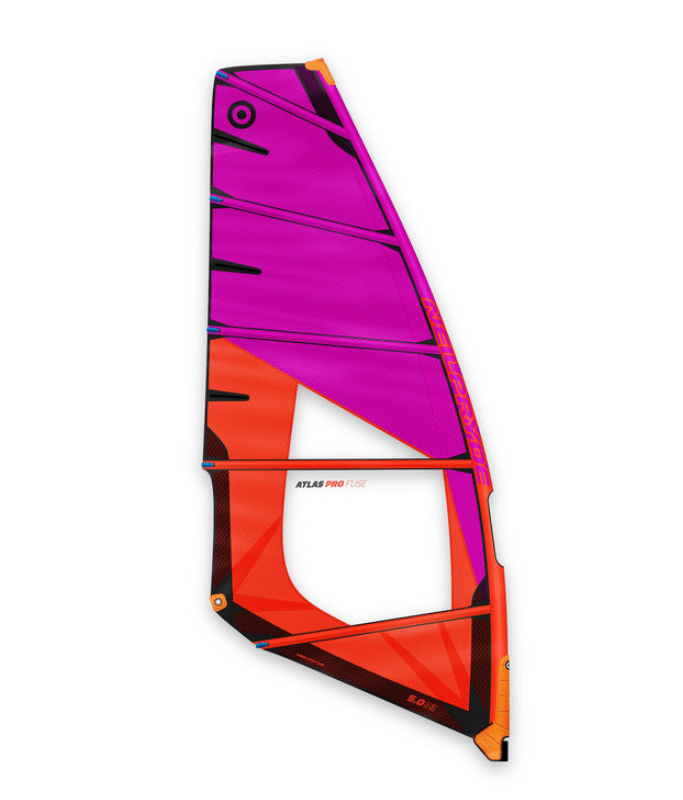

Neil Pryde ATLAS PRO FUSE
POWER WAVE – RESPONSIVE & LIGHT
Our favourite wave sail for onshore conditions and / or heavier sailors. Completely redesigned in 2024, the main design features remain unchanged for 2025. The Atlas features a slightly higher aspect ratio and adjusted sail shaping to allow for smoother handling and a much lighter feel in the hands. Ultra Scrim and Q – Bond panels significantly reduce weight – up to 25%. Blast over whitewater and jump higher than ever, without sacrificing agility on the wave. New for 2025, the foot and clew panels now feature ArmorTech, our custom double Taffeta – Technora laminate for even greater strength in these high-load areas.
Ultralight Durability
Built on the foundations of NeilPryde‘s patented reinforcement technologies, Pro Fuse sails are not only super light, but as strong (or stronger) than any NeilPryde sail ever built.
**4.2 Atlas only available in HD C1 Blue / Deep Aqua**
SIZE m2 | LUFF cm | BOOM cm | BASE cm | WEIGHT PRO FUSE / PRO HD / HD kg | BATTENS | CAMS | IDEAL MAST | ALTERNATIVE MAST | TOP FINISHING |
4.2 | 384 | 154 | 14 | 2.6 / 2.65 / 2.7 | 5 | 0 | 370 RDM | Fixed Head | |
4.6 | 400 | 161 | 30 | 2.8 / 2.85 / 2.9 | 5 | 0 | 370 RDM | Fixed Head | |
5 | 416 | 167 | 16 | 2.85 / 2.9 / 2.95 | 5 | 0 | 400 RDM | Fixed Head | |
5.4 | 432 | 173 | 32/2 | 3 / 3.05 / 3.10 | 5 | 0 | 400 RDM | 430 RDM | Fixed Head |
5.8 | 446 | 178 | 16 | 3.15 / 3.2 / 3.25 | 5 | 0 | 430 RDM | 430 SDM | Fixed Head |
6.2 | 460 | 182 | 30 | 3.25 / 3.3 / 3.35 | 5 | 0 | 430 RDM | 430 SDM | Fixed Head |
6.5 | 472 | 187 | 12 | 3.3 / 3.35 / 3.4 | 5 | 0 | 460 RDM | 430/460 SDM | Fixed Head |
PRO FUSE
Q-Bonded Aramid Pro Fuse tack and clew
Lightweight Ultra Scrim upper panels
Rip stop Taffeta X-Ply laminate luff
Ultra clear window panel
Best visibility on the wave
Meets our pro’s demands as our lightest, most responsive construction

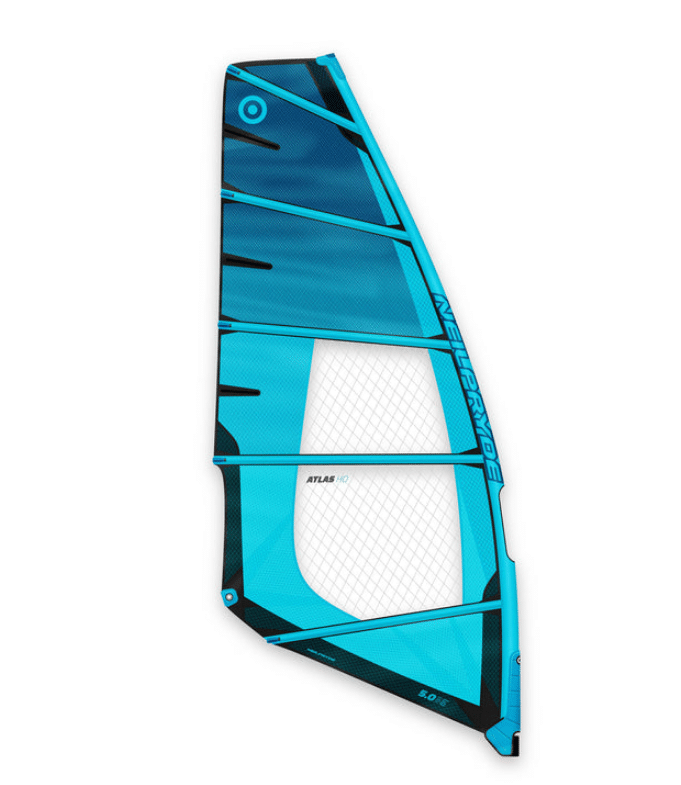

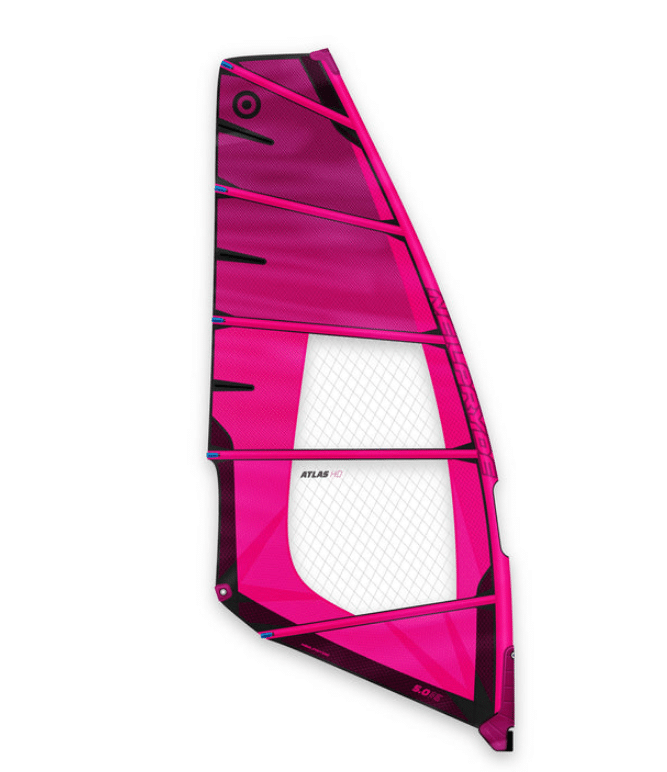

ATLAS HD
POWER WAVE – CLASSIC HEAVY DUTY
Our favourite wave sail for onshore conditions and / or heavier sailors. Completely redesigned in 2024, the main design features remain unchanged for 2025. The Atlas features a slightly higher aspect ratio and adjusted sail shaping to allow for smoother handling and a much lighter feel in the hands. Blast over whitewater and jump higher than ever, without sacrificing agility on the wave.
HD construction is our most economical construction but don’t let the price tag fool you. The Ultra – PE X- Ply sail body with an X -Ply centre window form an extremely durable sail which is still light in the hands. The introduction of Powerfuse in the tack and clew of our HD construction since 2024 represents a significant upgrade over previous HD models, providing a pro-level strength-to-weight ratio at a more affordable price than the Pro Fuse.
**4.2 Atlas only available in HD C1 Blue / Deep Aqua**
SIZE m2 | LUFF cm | BOOM cm | BASE cm | WEIGHT PRO FUSE / HD | BATTENS | CAMS | IDEAL MAST | ALTERNATIVE MAST | TOP FINISHING |
4.2 | 384 | 154 | 14 | NA / 2.75 | 5 | 0 | 370 RDM | Fixed Head | |
4.6 | 400 | 161 | 30 | 2.9/2.95 | 5 | 0 | 370 RDM | Fixed Head | |
5 | 416 | 167 | 16 | 2.95/3 | 5 | 0 | 400 RDM | Fixed Head | |
5.4 | 432 | 173 | 32/2 | 3.10/3.15 | 5 | 0 | 400 RDM | 430 RDM | Fixed Head |
5.8 | 446 | 178 | 16 | 3.25/3.3 | 5 | 0 | 430 RDM | 430 SDM | Fixed Head |
6.2 | 460 | 182 | 30 | 3.35/3.4 | 5 | 0 | 430 RDM | 430 SDM | Fixed Head |
6.5 | 472 | 187 | 12 | 3.4/3.5 | 5 | 0 | 460 RDM | 430/460 SDM | Fixed Head |
HD
Laminated Powerfuse Tack and Clew
Black Ultra-PE Triax upper panels
Ultra-PE in leech and head of sail
Rip stop Taffeta X-Ply laminate luff
Ultra-PE X-Ply window panel
Our most durable and most affordable wave sail construction
