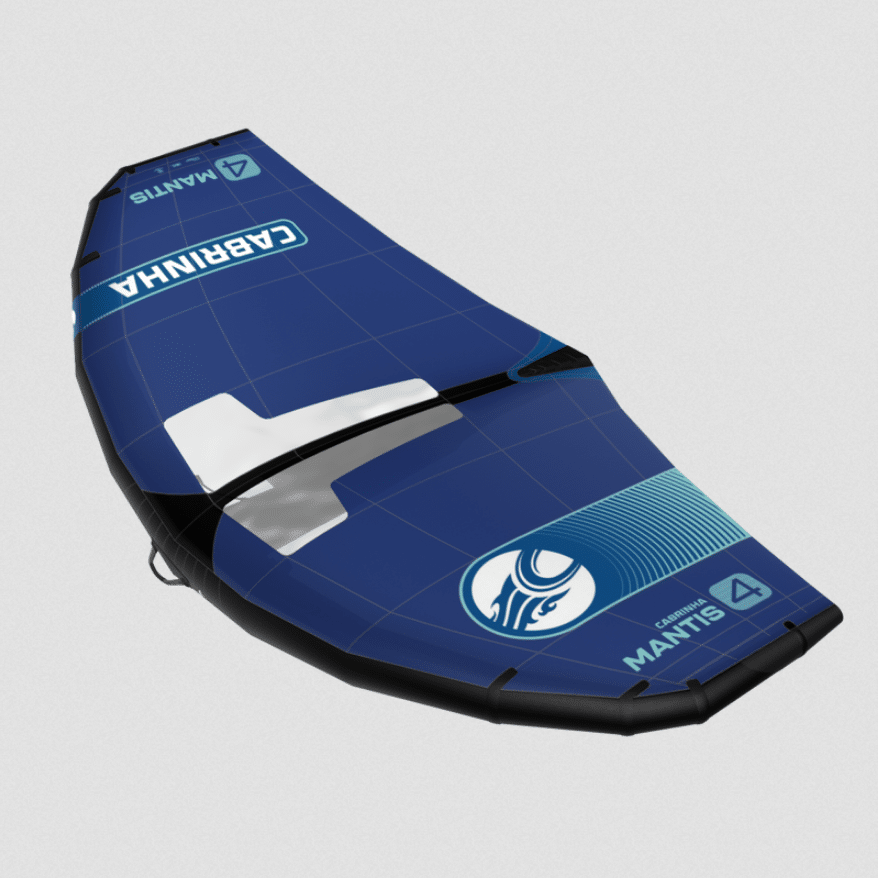

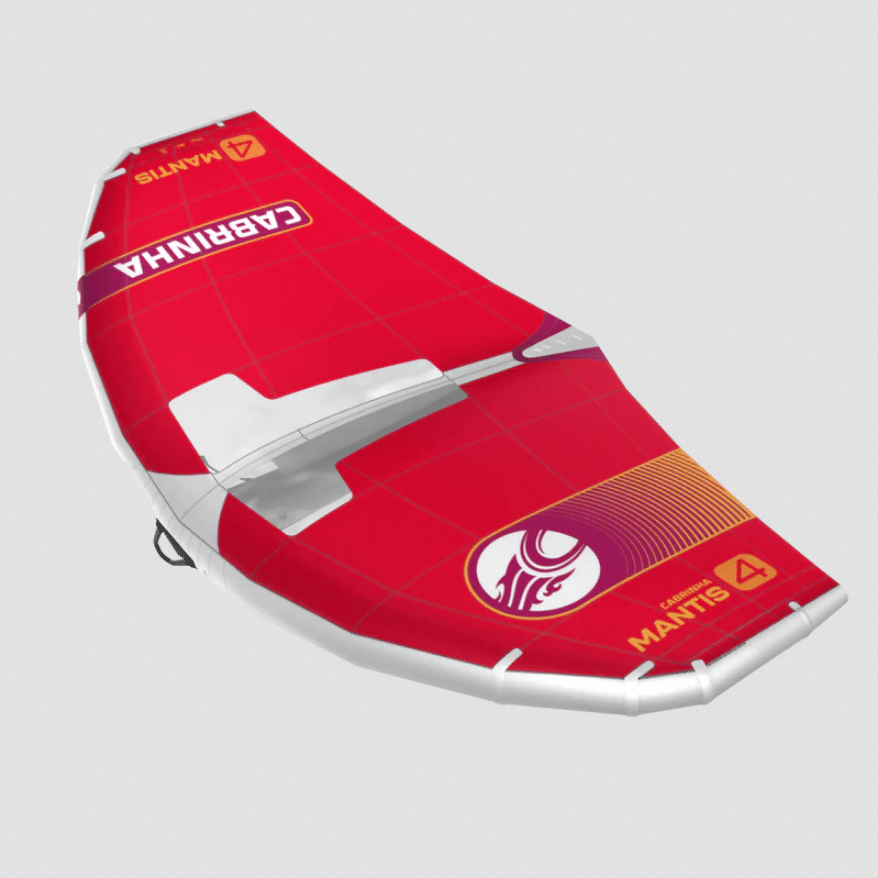

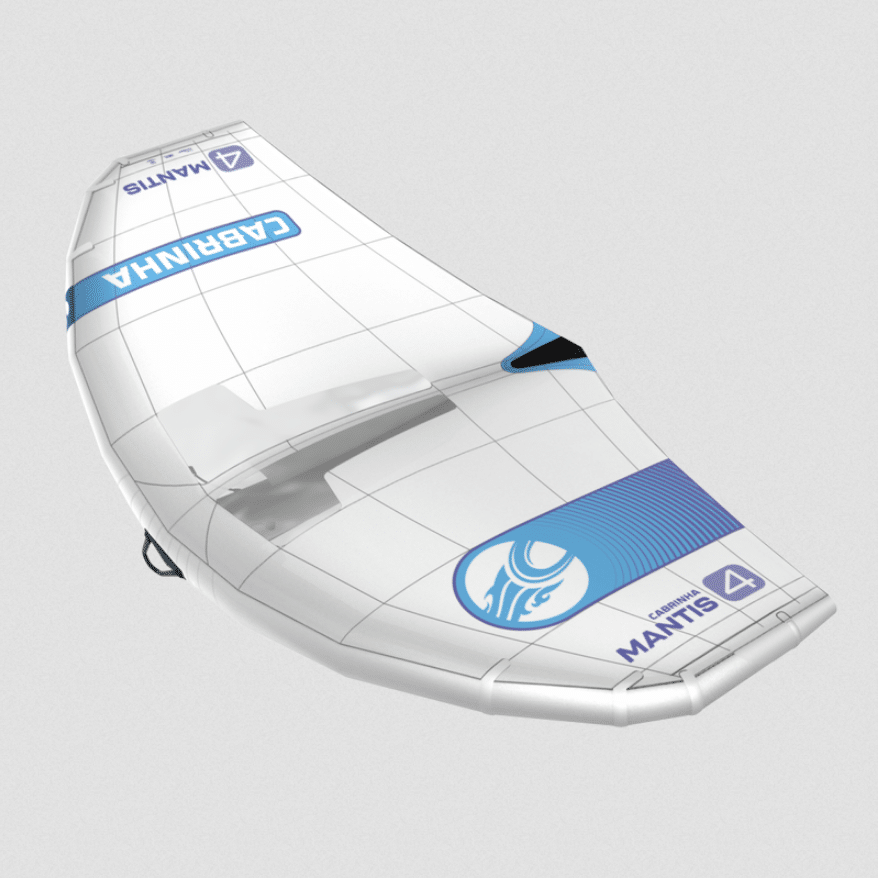

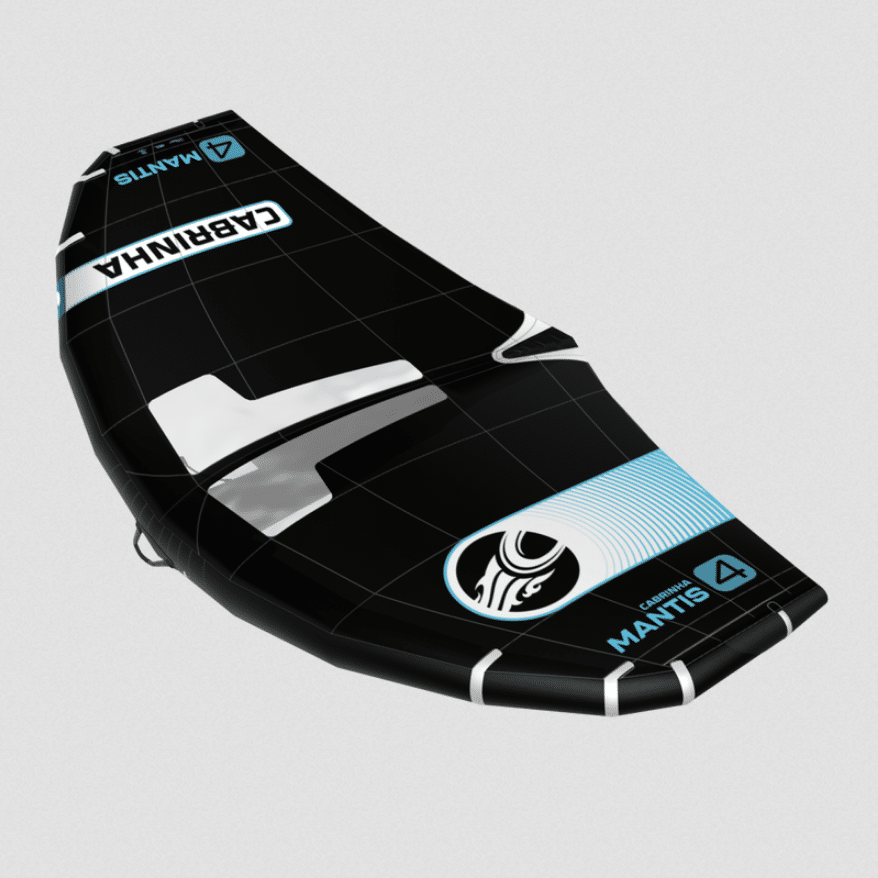

Cabrinha MANTIS 2024
ALL AROUND FREERIDE, WAVE AND BIG AIR
Sizes: 2m / 2.5m / 3m / 3.5m / 4m / 4.5m / 5m / 6m
The gold standard in winging is back with its 4th generation design.
Crafted for those who demand the best, the Mantis V4 is the pinnacle of stability, power and feel.
With a focus being made towards power distribution and torsional control and cleanliness, the 04 Mantis marks the biggest evolutionary step for this iconic wing.
The new spanwise load path panel layout, combined with the graduated TE load patch, make this the cleanest and highest performing Mantis to date.
*Includes: Bag, repair kit and stickers.
- NEW: Convex strut for improved frame stiffness and extended TE canopy support
- NEW: Graduated TE load distribution panel for improved efficiency of the loaded sail
- NEW: refined airfoil flow
- NEW: spanwise load path panel layout
- NEW: Fully moulded composite widespan handles with indexing mounting interface.
- NEW: Full rigid performance LE handle with anti-abrasion patch
- NEW: 2-ply frame elbow panels for improved arc rigidity
- NEW: Fine tuned size progressive wing tip twist for forgiving sheeting
- High Tenacity Dacron for enhanced dihedral stability and improved handling characteristics.
- Heavy duty UHMPWE reinforced closing seam construction
- Nano Ripstop Canopy, the benchmark in durability, stability and responsiveness
- Sprint 3.0 and deflate valve
- Durable TPU bumpers
- 2-ply high rigidity centre load reinforcement for added arc and dihedral stability
- Refined convex dihedral for power-to-stability ratio
- Refined airfoil centre section for low end power
Size | 2m | 2.5m | 3m | 3.5m | 4m | 4.5m | 5m | 6m |
---|---|---|---|---|---|---|---|---|
Wind Range in Knots (75kg rider) | 25-45 | 20-40 | 17-36 | 16-34 | 15-30 | 13-27 | 11-26 | 7-20 |
Weight of Wing (kg) Without Bag
(Tolerances may vary) |
1.64 | 1.82 | 1.98 | 2.18 | 2.38 | 2.60 | 2.73 | 3.13 |
Cabrinha MANTIS 2023
ALL-AROUND FREERIDE
Sizes: 2m / 2.5m / 3m / 3.5m / 4m / 4.5m / 5m / 6m / 7m
If there is one wing that has helped shape and define the sport, it’s the Mantis.
Now in its 3rd generation the wing which set the benchmark for stability and rigidity has been further refined to maximize the true potential of wing foiling.
Increased convex dihedral has helped expand the range of the Mantis by providing an increased power to stability ratio, combined with the new Convex Strut the Mantis V3 is the cleanest and most efficient wing to date. A refined air foil section in the critical area of the wing has helped increase the low end power of the Mantis, further increasing its range of use.
Size | 2m | 2.5m | 3m | 3.5m | 4m | 4.5m | 5m | 6m | 7m |
---|---|---|---|---|---|---|---|---|---|
Wind Range in Knots (75kg rider) | 25-45 | 20-40 | 17-36 | 16-34 | 15-30 | 13-27 | 11-26 | 7-20 | 6-18 |
Weight of Wing (kg) Without Bag
(Tolerances may vary) |
1.48 | 1.68 | 1.86 | 2.03 | 2.22 | 2.45 | 2.64 | 2.97 | 3.31 |
