Hydrofoil RRD Dynamic Pro SWK Alu

The Dynamic Pro Alu SWK is a no compromise foil set. Each component is simply on a league of its own in terms of raw material selection and hydrodynamics up to the point that it suits the most demanding wing, surf and kite – foilers.

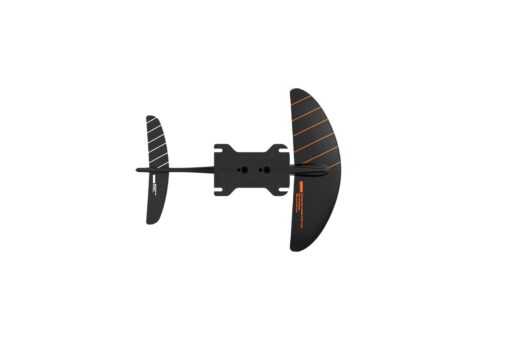

The Dynamic Pro front wing profile is the engine of this hi performance foil, designed with a negative dihedral angle turning into a neutral one on the tips. This special wing design with a differentiated dihedral angle is the base for turning potential and stability. You’ll fly with control at a higher speed and draw the sharpest turns.

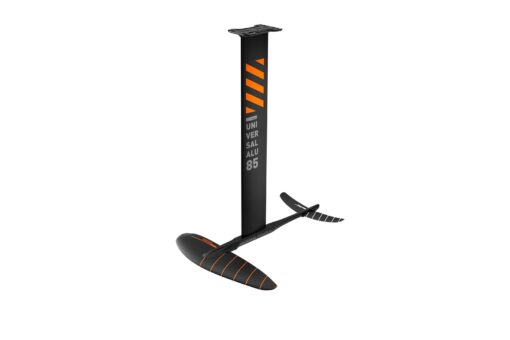

The new Universal Alu 85 mast sets a new standard for aluminium hi-performance masts being 30% stiffer and lighter due to a new profile and light integrated plate. This mast perfectly connects with the fuselage and wings resulting in an ultra rigid set appreciated by most riders out there.

What you are getting is a specialist and performance hydrofoil.

The Dynamic Pro Alu WK 700 has a pure kite spirit. This top level new ALU set is simply a masterpiece in engineering. Mixing our super stiff Universal alu mast with a hi performance front and rear combo of carbon wings designed for fast freeride and wave riding. There is no limit of fun in whatever conditions you may be riding in, as you have a solid platform under your feet which gives that extra confidence for every level of riding. It can also be used from pro level wingfoilers looking for top performances in stronger winds.

Recommended for kitefoilers both in freeride and wave and for professional lightweight wingfoilers.

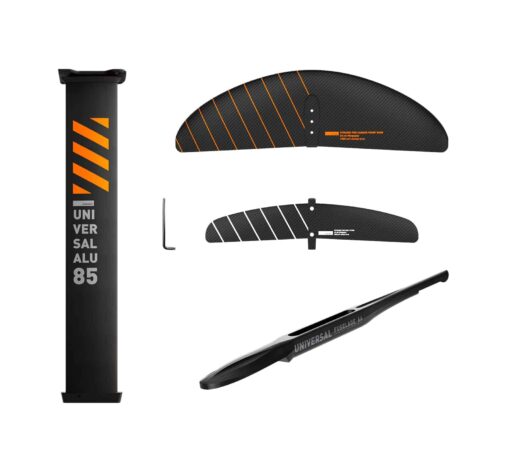

• New full carbon Dynamic Pro front wing with camber
• New Dynamic Pro carbon rear wing
• New 30% stiffer and lighter aluminium mast with integrated plate
• New redesigned 66 cm light Universal fuselage
• Solid connection using 8 mm diameter Torx screws and helicoil threads for mast, fuselage and wings. A reliable, strong and quick to assemble/disassemble connection
• New wider Hi density plastic mast foot connector/adaptor for improved lateral stiffness. No oxidation between mast and fuselage
• Each component comes with an EVA Cover with Velcro to fasten it inside the bag (foil set bag supplied separately).

SPECS

MODEL	MAST	FUSELAGE	FRONT WING	REAR WING	ART CODE
DYNAMIC PRO CARBON WK 700 FOIL SET	85 cm	66 cm	Wing span 55,5 cms / wing area 700 cm2	Wing span 37 cms / wing area 210 cm2	26DPCWKF700S



MODEL	MAST	FUSELAGE	FRONT WING	REAR WING	ART CODE
DYNAMIC PRO ALU SWK 900 FOIL SET Y26	85 cm	66 cm	Wing span 66,4 cms / wing area 900 cm2	Wing span 37 cms / wing area 210 cm2	26DPASWKF900S



MODEL	MAST	FUSELAGE	FRONT WING	REAR WING	ART CODE
DYNAMIC PRO ALU SWK 1200 FOIL SET Y26	85 cm	76 cm	Wing span 74,7 cms / wing area 1200 cm2	Wing span 42 cms / wing area 250 cm2	26DPASWKF1200S



MODEL	MAST	FUSELAGE	FRONT WING	REAR WING	ART CODE
DYNAMIC PRO ALU SWK 1500 FOIL SET Y26	85 cm	76 cm	Wing span 83 cms / wing area 1500 cm2	Wing span 42 cms / wing area 250 cm2	26DPASWKF1500S

MAST

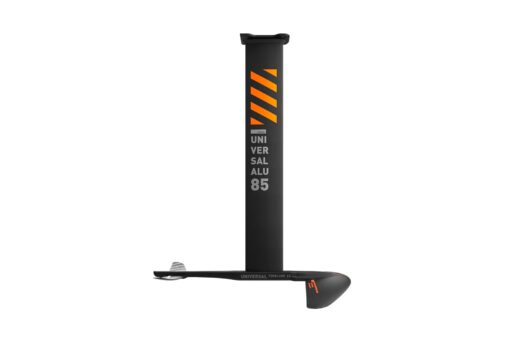

The new wider profile and stiffer Universal ALU mast with integrated plate is the top combination for speed potential and superior control. The aluminum plate has been optimized in dimension and integrated into the alu mast using new 8 mm diameter screws to obtain a more solid connection. This mast is 15% lighter and stiffer both in flex and torsion, compared to his predecessor. It has a maximum thickness of 18mm and its profile is also proportionally thicker towards the rear part of the mast in order to minimise twist. We have also introduced a new middle stringer structure in between the two screws that have allowed a higher lateral stiffness. The mast Is now waterproof
