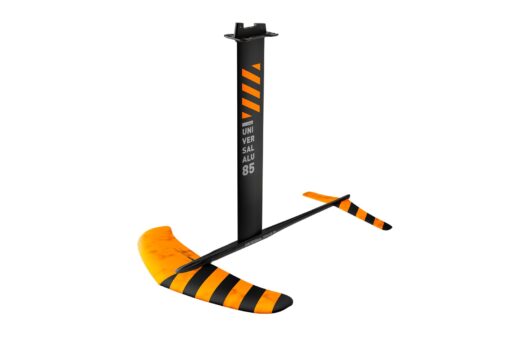

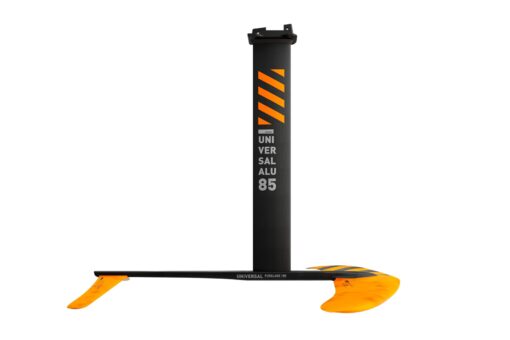

The Universal WS ALU foil set is the tool to enter the exhilarating foil dimension. You can learn how to fly and jibe in 2 days! Spectacular lift starting at 8 knots of board speed and you can go all the way up to 18 knots with pleasure, comfort and exhilarating fun. It couldn’t be easier to learn the first freestyle tricks due to its stability and control even at low revs.
It is the most versatile hydrofoil in the range. A front wing of 1582 sqcms/82 cms wingspan allows this foil to be converted into a Wing/Kite/SUP-Surf foil with the purchase of a shorter fuselage (from 100 to 76 cms).
Recommended for all level freeriders, the ideal hydrofoil for schools and learners.

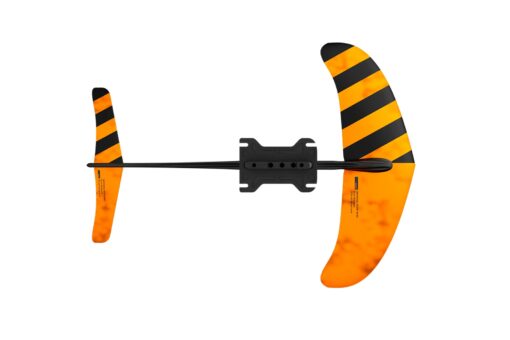

- 1582cm2 Universal hybrid carbon front wing
- New 30% stiffer and lighter aluminium mast with integrated plate and removable tuttle head
- New redesigned 100 cm light Universal fuselage
- Solid connection using 8 mm diameter Torx screws and helicoil threads for mast, fuselage and wings. A reliable, strong and quick to assemble/disassemble connection
- New wider Hi density plastic mast foot connector/adaptor for improved lateral stiffness. No oxidation between mast and fuselage
- Each component comes with an EVA Cover with Velcro to fasten it inside the bag (foil set bag supplied separately).
|MODEL||MAST||FUSELAGE||FRONT WING||REAR WING||ART CODE|
|UNIVERSAL WS ALU 1600 FOIL SET Y26||85 cm||100 cm||Wing span 82 cms / wing area 1582 cm2||Wing span 52 cms / wing area 373 cm2||26UWFS1600S|

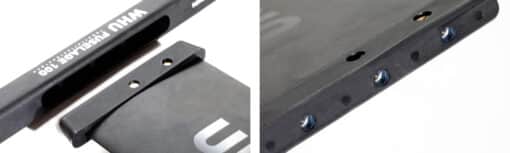

MAST FUSELAGE CONNECTION
The new mast foot adaptor design is now wider for improved lateral stiffness, securing a “one welded piece“ feeling between fuselage and mast.
Hi density Plastic connector/adaptors to avoid oxidation between mast and fuselage connection. 2 x 8mm diameter Torx screws for a reliable, strong and quick connection.
Thanks to the use of these mast foot adaptors you can switch your foil from an Alu to a Carbon Mast. No need to change your fuselage.
FOIL SET BAG (sold separately)
Our new foil set bag 120 can fit any set and parts of our complete Y26 Hydrofoil collection.
There are velcro attachments that will fit and lock every part inside its padded cover so every component of any size will be secure and not move inside the bag.

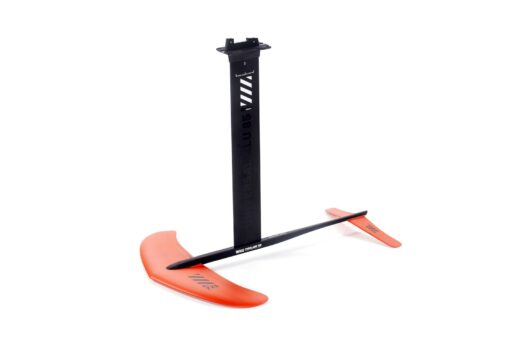

Learn how to foil and jibe in 2 days! Spectacular lift starting at 8 knots of board speed on the water. You can go all the way up to 18 knots of top speed with pleasure, comfort and exhilarating fun. Is the most versatile hydrofoil in the range. A front wing of 1500 sqcms/82 cms wingspan allows this foil to be converted into a Kite/SUP-Surf foil with the purchase of a shorter fuselage (from 100 to 76 cms).

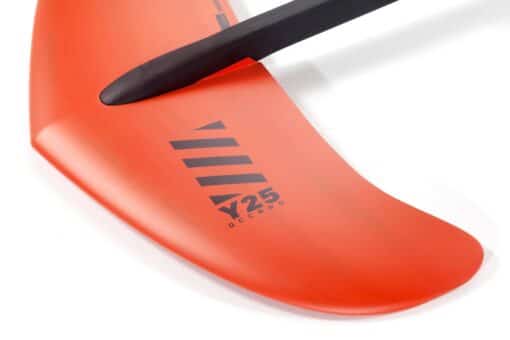

- Universal hybrid carbon front wing with thicker profile.

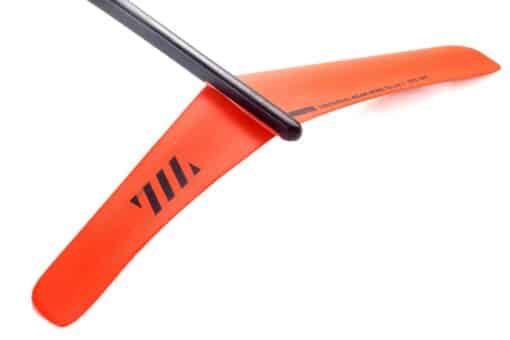

- Universal hybrid carbon rear wing with negative dihedral (anhedral) design to keep foiling with ease when jibing. It also helps pumping the board with your feet.

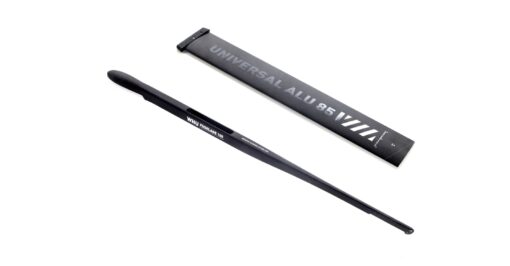

- Wider and stiffer Universal ALU mast with extra internal wall thickness and reduced outside profile, the top combination for speed potential and superior control. The most evolved ALU mast in the market today.
- Plastic connector at the bottom of the mast allows to fit it to any fuselages from kite to surf foils, and by separating aluminum parts contact it avoids oxidation and corrosion typical when aluminum touches
aluminum. Longer lifetime.
- WHU alu fuselage with extra wide head area to carry and support super wide wings (up to 120 cms wingspan and 3000 sqcms).
- Stainless steel (aisi 316) helicoil threads on mast and fuselage for the longest durability and easier to unscrew.

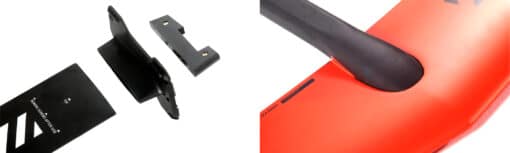

- Removable universal plate allows to change to any mast length for perfect trim and skills.
It makes your packing more compact (no plate mounted sideways inside your bag) and allows to convert your connection into any board attachment system (4 way screws, tuttle and powerbox). Tuttle head comes standard on this set.
|MODEL||MAST (mm)||FUSELAGE (mm)||FRONT WING||REAR WING||ART CODE|
|UNIVERSAL WH ALU SET||850||1000||82/1582 (cm/cm2)||52/373 (cm/cm2)||25UWHA|
